The color steel integral bathroom system innovatively developed by Runfa Residential uses a golden combination of high-strength SMC/FRP composite chassis and coated color steel wallboard to create a modern bathroom space solution that integrates stable structure, efficient installation, and personalized customization. The products strictly follow international building standards to meet the quality needs of sanitary spaces in various architectural scenes.
| Type | Product Name | Specification (Unit: mm) | Material |
| Main Body | Waterproof Base | Anti - slip surface, color | optional SMC/FRP |
| Wall Panel | Customizable: W (Width) ≤ 1200, H (Height) ≤ 4000, color optionalCore material: rock wool or aluminum honeycomb | Film - covered color steel | |
| Ceiling (Single - layer/Double - layer) | White, optional inspection opening 450x450 | Film - covered color steel | |
| Bathroom Door |
1. Aluminum alloy door frame + tempered glass door leaf 2. Aluminum alloy door frame + PVC door leaf 3.Aluminum alloy folding door |
||
| Floor Drain | Same - layer drainage/different - layer drainage, water seal ≥ 50 | ABS/PVC | |
| Accessories | Washbasin | Optional "integrated basin", "ceramic basin", "bathroom cabinet + basin" | Ceramic/SMC/ABS |
| Toilet | Ceramic, bottom - discharge/side - discharge | Ceramic | |
| Shower Head | Optional single - hanging/sliding - rod/top - spray styles | Copper - plated chromium | |
| Basin Faucet | Optional brand styles | Copper - plated chromium | |
| Small Hardware | Optional styles with cover/bracket | Copper - plated chromium/space aluminum/stainless steel/ABS | |
| Electrical Appliances | Optional brand styles |
Product Advantages
Combination of SMC/FRP tiled chassis and coated color steel wallboard
The body bathroom has stable structure, convenient installation, and fixed personality.
It has the characteristics of making a system, and there is no hollow feeling when stepping on, and is widely used in Hardcover residences, apartments, hospitals, Hong Kong public housing and transition Housing and other fields.
Innovative structure-leak-proof chassis
The waterproof disk is molded by integrated molding with high temperature and high pressure, so it is watertight. It has the advantages of wear resistance, corrosion resistance, slip resistance, heat insulation, etc.
Innovative structure-self-contained siding
There are three types of wall panels: SMC, VCM color steel and ceramic tiles
Product advantages
Easy to transform, mildew and bacteria, heat insulation and sound insulation, dry hooking and seaming, and stable structure
A certain gap is left between the wall panel and the wall to form an air protective layer. The waterproof pan, wall panels and top plates form an insulation box structure.
The connection between the wall panels adopts a prefabricated modular sealing structure, which is highly waterproof.
Galvanized steel plate wall columns, reinforced connection, stable structure.
Easy to transform twice and change styles. Avoid cumbersome construction during the secondary renovation of traditional decoration, and can be re-arranged without being limited by pipes.
The surface of color steel plate is covered with VCM, which is rich in color, mildew and bacteria, and is easy to clean.
Product details

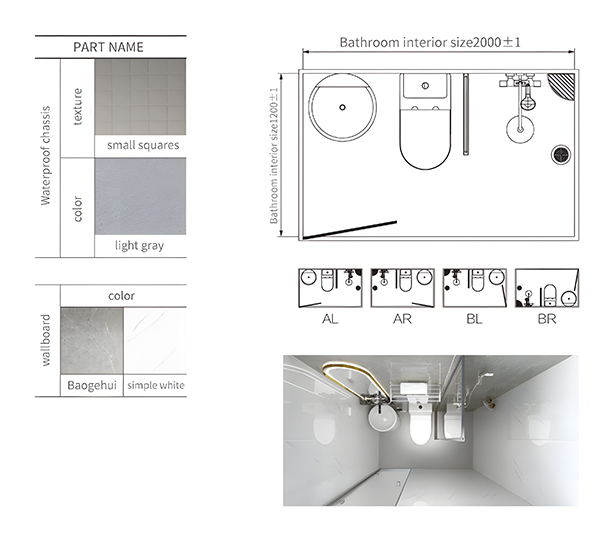

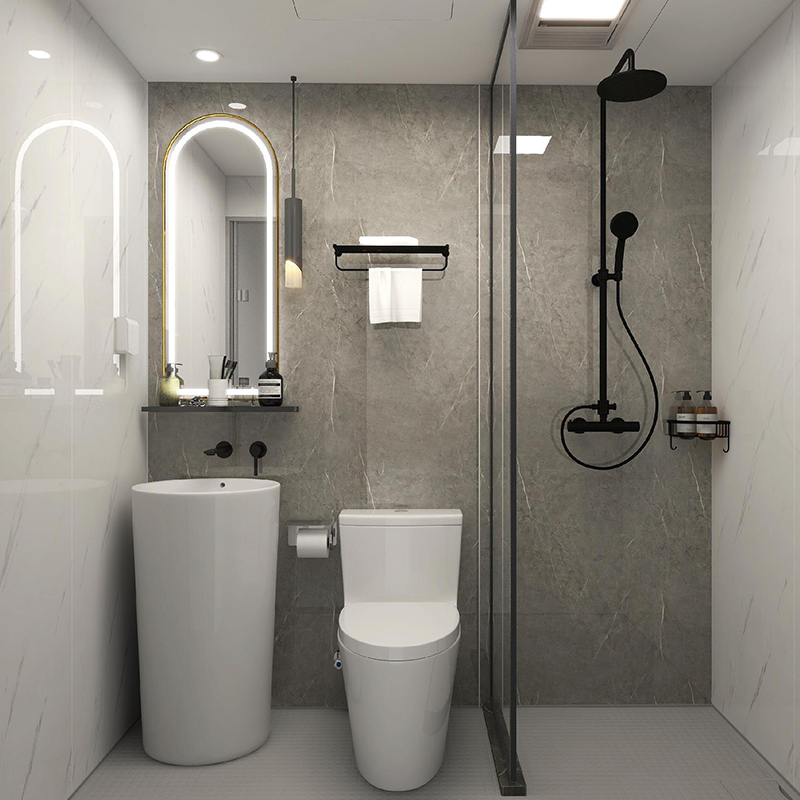

CUB1220 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1200x2000, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Baoge Gray/Simple White | |
| SMC Mold - Pressed Waterproof Base | 1200x2000, Light Gray Small Squares | |
| Glass Door | 700x2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin | Cylindrical Pedestal Basin | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 400x1000x30, with LED Light Strip/Storage Platform | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Partition | 600x2200, Floor - to - Ceiling | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300x600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

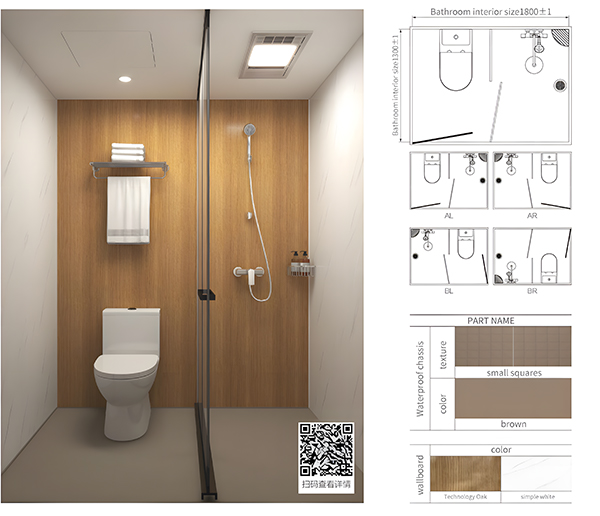

CUB1318 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1300x1800, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Tech Oak/Simple White | |
| SMC Mold - Pressed Waterproof Base | 1300x1800, Coffee - colored Small Squares | |
| Glass Door | 700x2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | 1300x2000, Single - leaf Swing - type | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300x600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

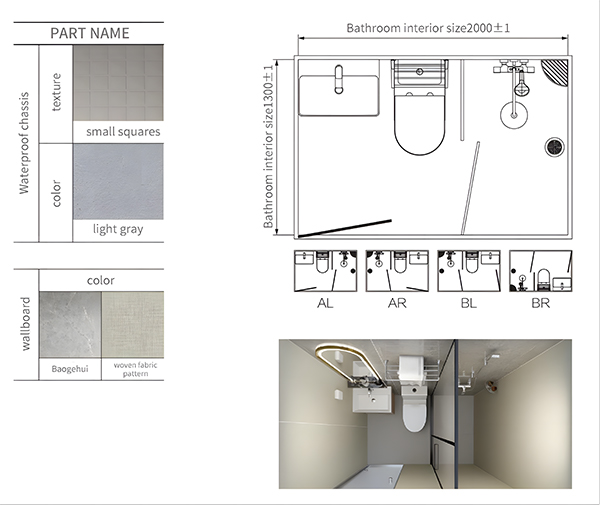

CUB1320 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1300x2000, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Baoge Gray/Woven Cloth Pattern | |
| SMC Mold - Pressed Waterproof Base | 1300x2000, Light Gray Small Squares | |
| Glass Door | 700x2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 600x460x550, Under - counter Basin/Including Bathroom Cabinet | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 400x1000x30, with LED Light Strip/Storage Platform | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | 1300x2000, Single - leaf Swing - type | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300x600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |
CUB1320G Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1300×2000, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Baoge Gray/Simple White | |
| SMC Mold - Pressed Waterproof Base | 1300×2400, Light Gray Small Squares | |
| Glass Door | 700×2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 600×460×550, Under - counter Basin/Including Bathroom Cabinet | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 400×1000×30, with LED Light Strip/Storage Platform | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Partition | 400×2200, Floor - to - Ceiling | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300×600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

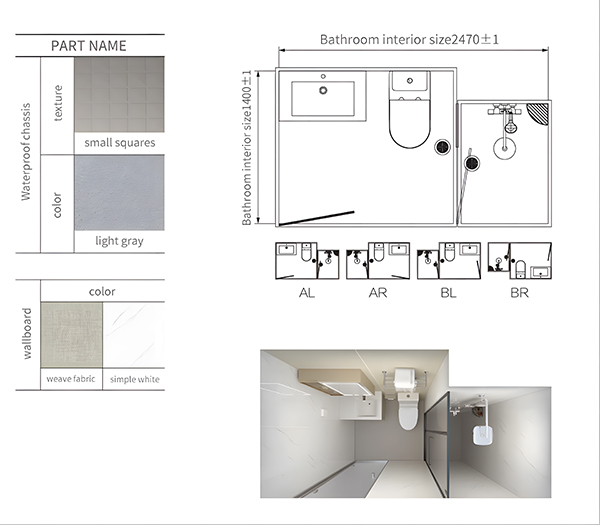

CUB1425G Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1400×2500, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Woven Cloth Pattern/Simple White | |
| SMC Mold - Pressed Waterproof Base | 1400×2500, Light Gray Small Squares | |
| Glass Door | 700×2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 800×460×550, Under - counter Basin/Including Bathroom Cabinet | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror Cabinet | 800×140×800 | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | 1100×2000, Single - leaf Swing - type | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300×600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

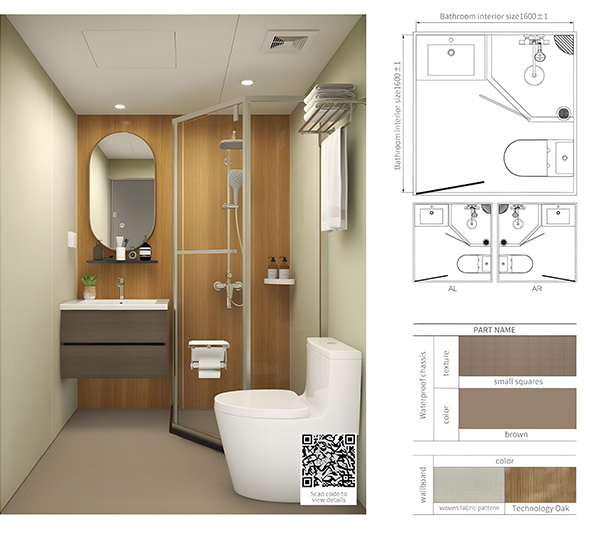

CUB1616 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1600×1600, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Woven Cloth Pattern/Tech Oak | |
| SMC Mold - Pressed Waterproof Base | 1600×1600, Coffee - colored Small Squares | |
| Glass Door | 700×2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 700×460×550, Under - counter Basin/Including Bathroom Cabinet | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 500×890×40, with Aluminum Alloy Frame/LED Light Strip/Storage Platform | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | H = 2000, Diamond - shaped | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300×600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

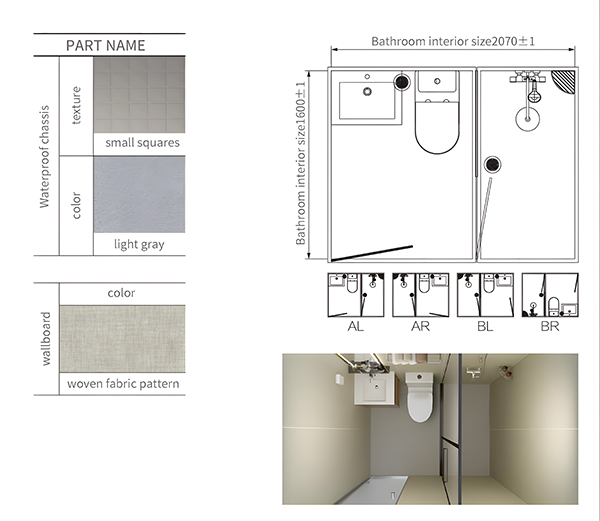

CUB1621 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1600×2070, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Woven Cloth Pattern | |
| SMC Mold - Pressed Waterproof Base | 1600×2070, Light Gray Small Squares | |
| Glass Door | 700×2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 600×460×550, Under - counter Basin/Including Bathroom Cabinet | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 400×1000×30, with LED Light Strip/Storage Platform | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | 1600×2000, Single - leaf Swing - type | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300×600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box |

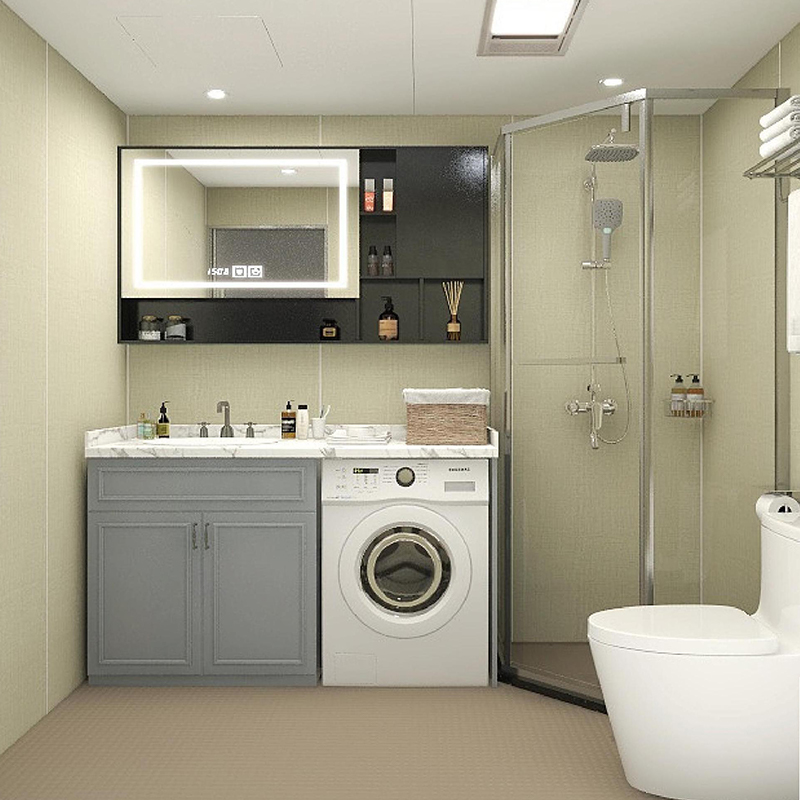

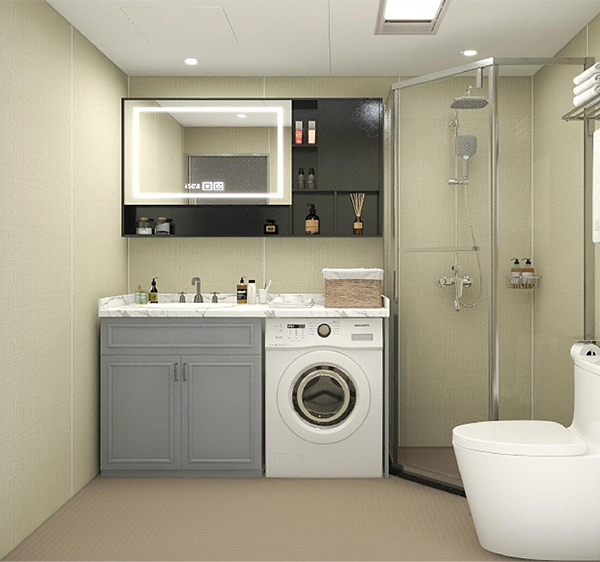

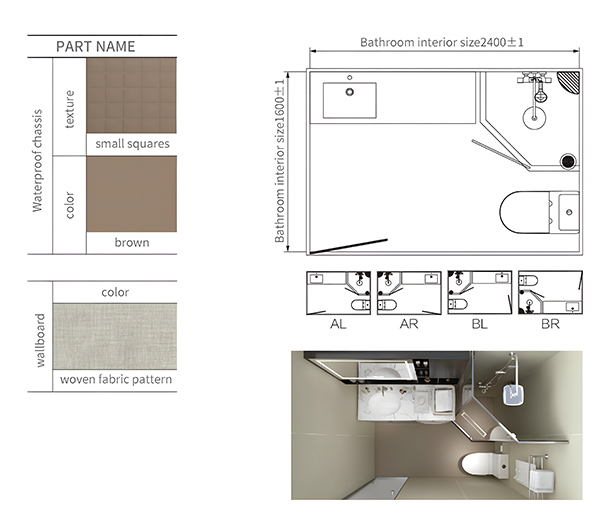

CUB1624 Product details
| Category | Part Name | Specification Model (mm) |
| Main Body | Color Steel Top Cover | 1600×2400, White, Flat - topped |
| Color Steel Wall Panel | H = 2200, Woven Cloth Pattern | |
| SMC Mold - Pressed Waterproof Base | 1600×2400, Coffee - colored Small Squares | |
| Glass Door | 700×2000, Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge Vertical Discharge | |
| Accessories | Part Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 800×460×550, Under - counter Basin/Including Bathroom Cabinet/Washing Machine Area | |
| Wash Basin Faucet | Copper - plated Chrome | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror Cabinet | 1400×140×800 | |
| Towel Rack | L = 400, Copper - plated Chrome | |
| One - piece Toilet | Ceramic, Top - Press Type | |
| Toilet Paper Holder | Copper - plated Chrome | |
| Shower Head | Copper - plated Chrome | |
| Shower Screen | H = 2000, Diamond - shaped | |
| Triangular Shelf | Copper - plated Chrome | |
| LED Downlight | Fuzhao 4W - 4000k | |
| Warm Air Blower | 300×600, Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Box | |
| Washing Machine | Drum - type |
ABOUT Runfa
Runfa Residential Technology (Changzhou) Co., Ltd. The company's registered capital is 62.88 million yuan and currently employs more than 300 people.
Runfa Residential Technology is mainly engaged in the research and development and production of SMC and BMC materials, and has gradually built an industrial chain with communications, power, overall sanitary ware, and environmental protection products as its main business goals. Its main products include:
1.Production of raw materials for SMC and BMC
2. Communication category: optical cable junction box, optical cable distribution box and sheet metal box
3. Power category: SMC materials such as TTU, FTU, and DTU and sheet metal boxes
4. Integral bathroom category: SMC molded top plate, wall plate and chassis, SMC mirror cabinet, SMC integrated basin
5. Environmentally friendly product categories: SMC waffle boards, etc.
6. Gas meter box: SMC molded gas meter box, stainless steel gas meter box
Runfa Residential Technology has strong production and processing capabilities. Currently, its main production and processing equipment includes 2 lines of SMC units, which can achieve an annual output of 30,000 tons, 30 hydraulic presses of various types, 11 injection molding machines, more than 10 sheet metal processing equipment such as digital punching, laser, and digital folding, and 4 pigtail production lines. The company has established a total of 7 workshops: SMC workshop, molding workshop, assembly workshop, painting workshop, sheet metal workshop, assembly workshop and injection molding workshop.
Runfa Residential Technology has a complete variety of box products and a large scale of SMC product production and processing in the communications industry and power grid industry. It has become one of the major suppliers in the national communications industry and power grid industry. The company adheres to the business philosophy of putting quality first and user satisfaction, and continuously improves the quality management system. It has passed ISO9001 quality management system certification.
