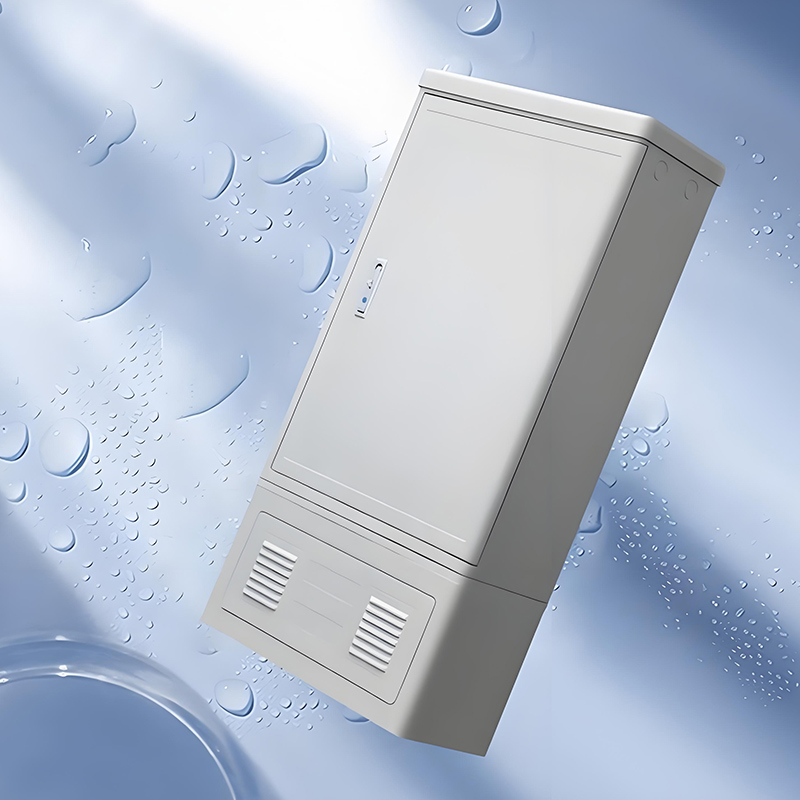

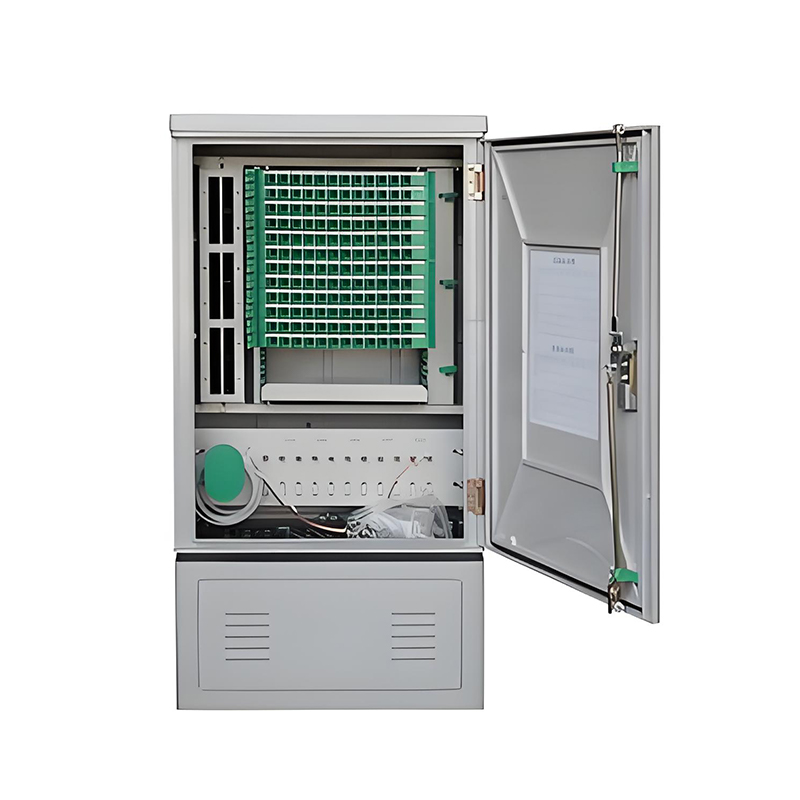

144 Core Fiber Optic Cabinet is applied to connect and dispatch fiber cable. It can place the PLC splitter inside and realize the terminal connection of main cable and distribution cable.
Features
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Product specifications
| Runfa Optoelectronics box size specifications | |||
| Operators | Optical cable cross connecting cabinet | Material | Box Specifications |
| Power | 72-core optical cable handover box (no bottom) | SMC Composite | 630X448X280 |
| Power | 72-core optical cable handover box (no bottom) | SMC Composite | 700X448X280 |
| Communication | 144-core optical cable handover box (wall hanging) | SMC Composite | 775X555X310 |
| Communication | 144-core optical cable handover box (floor) | SMC Composite | 1035X555X310 |
| Communication | 288-core optical cable handover box (floor) | SMC Composite | 1450X750X320 |
| Communication | 288-core optical cable handover box deepened (landing) | SMC Composite | 1450X750X360 |
| Communication | 288-core optical cable handover box (mobile box) | SMC Composite | 1480X750X360 |
| Communication | The 288-core optical cable junction box is deepened and taller | SMC Composite | 1550X750X360 |
| Communication | 576-core optical cable junction box (floor) | SMC Composite | 1450X750X540 |
| Communication | 576-core optical cable junction box is deepened or not increased | SMC Composite | 1450X750X620 |
| Communication | 576-core optical cable handover box (mobile box) | SMC Composite | 1480X750X620 |
| Communication | 576-core optical cable junction box deepens and heightens | SMC Composite | 1550X750X620 |
| Communication | Single-sided 576-core optical cable delivery box | SMC Composite | 1550X1500X360 |
| Communication | 1152-core optical cable delivery box | SMC Composite | 1550X1500X620 |
Application
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks

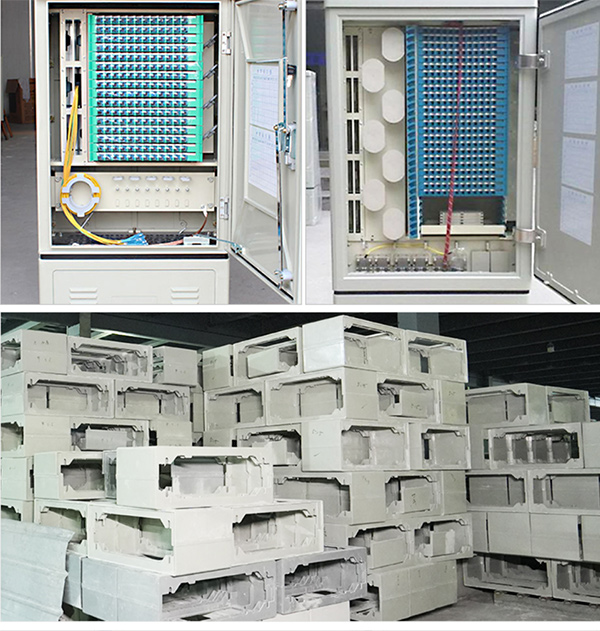

SMC optical cable delivery box production process
1. material preparation
SMC material preparation: Prepare sheet molding compound (SMC), usually composed of resin, glass fiber and filler.
Accessories procurement: purchase optical fiber distribution frames, connectors, grounding devices, etc.
2. mold making
Mold design and manufacturing: Make molds according to design drawings to ensure size accuracy and surface quality.
Mold debugging: Conduct trial molds and adjust parameters to ensure forming quality.
3. molding process
SMC molding: Put SMC material into a tool, and mold the box through high temperature and high pressure,
Curing and cooling: Curing and cooling after forming to ensure the strength and stability of the box.
4. machining
Cutting and drilling: Cutting, drilling and other processing are carried out on the formed box to ensure the accuracy of the installation holes and interfaces.
Surface treatment: Carry out polishing, spraying and other treatments to improve appearance and weather resistance.
5. Assembly and installation
Cutting and drilling: Cutting, drilling and other processing are carried out on the formed box to ensure the accuracy of the installation holes and interfaces.
Surface treatment: Carry out polishing, spraying and other treatments to improve appearance and weather resistance.
6. quality inspection
Visual inspection: Check surface quality and size accuracy,
Performance testing: Conduct waterproof, dustproof, compression and other tests to ensure compliance with standards.
Optical testing: Test the insertion loss and return loss of optical fiber connectors.
7. Packaging and Shipping
Packaging: Use shock-proof and moisture-proof materials for packaging
Identification and Recording: Label and record product information.
Shipping: Arrange logistics shipping.
Diversified styles to meet your diverse needs

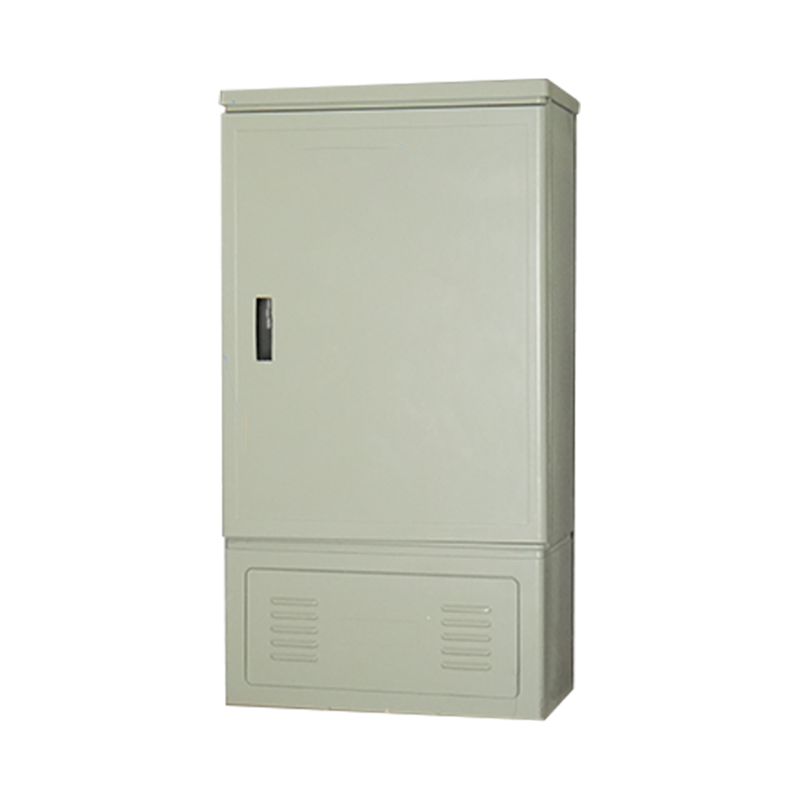

Power grid-optical delivery box
