8 Series Integrated Bathroom is an integrated bathroom solution that integrates innovative design, high-end materials and smart technology. It is specially designed for modern homes and commercial spaces that pursue quality life and space efficiency. Through its modular design, it perfectly integrates functions such as shower, washing, toilet, and storage to achieve "small space and great enjoyment", while at the same time enhancing the overall home style with a minimalist aesthetics.
Product highlights and advantages: It is integrated with modules such as main body, sanitary ware, fresh air, lighting, and artificial intelligence, and is combined with scientific and reasonable bathroom space layout design to realize the five major bathroom functions of bathing, toilet, storage, lighting and ventila.
Configuration Table
| Projects | Classification | Material, Color |
| Main Structure | Waterproof chassis | SMC molding |
| wall plate | SMC molding | |
| top plate | SMC molding | |
| thermal insulation door | PVC+ Aluminum Composite | |
| Toilet | toilet | ceramic |
| tissue box | ABS | |
| Shower | Shower hot and cold mixer faucet | copper plating |
| towel rack | stainless steel | |
| bath cord | stainless steel | |
| Triangle shelf | ABS | |
| Electrics | ventilator | ABS |
| Socket, splash box | ABS | |
| Ceiling-mounted ceiling lamp | LED | |
| Wash | mirror box | silver mirror |
| bathroom cabinet | solid wood | |
| Basin hot and cold mixing faucet | copper plating |
| Advantages of overall bathroom | ||
| integral bathroom | Traditional bathroom | |
| process | Avoid waterproofing → Water and electricity layout → Installation and use | Layout water and electricity → Raise cement → Make waterproofing → Build walls and bricks → Ceiling → Purchase bathroom parts → Install and use |
| construction period | Building blocks for 2 hours | more than 2 weeks |
| Covering the public | installer | Masons, plumbers, installers, etc. |
| cost comparison | Product fee, installation fee | Various sanitary facilities cost, long construction period and high labor cost |
| Can be reused or resold after demolition | non-recyclable | |

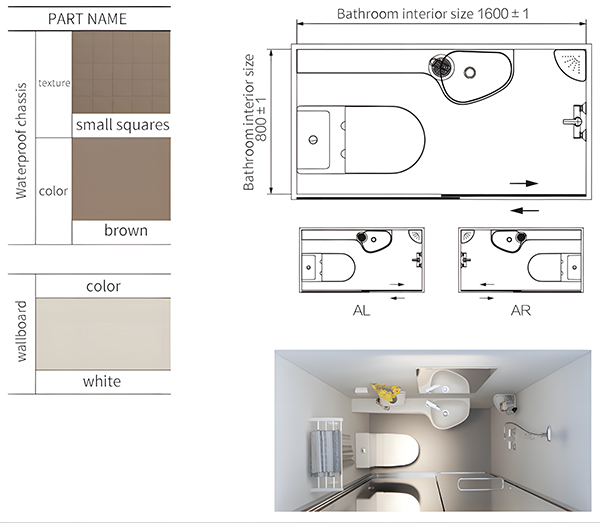

| Body | part name | specification model(mm) |
| SMC Molded Top Cover | 800x1600White flat top | |
| SMC Molded Wall Panel | H=2200White | |

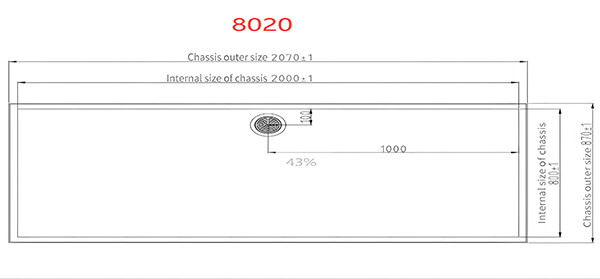

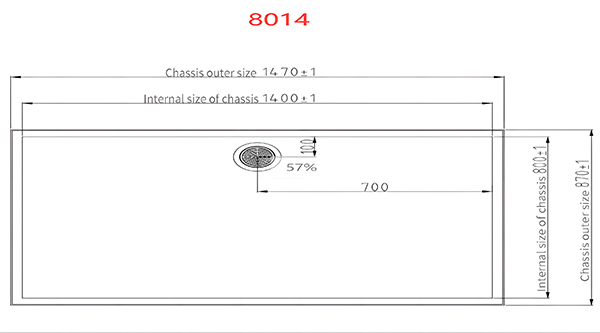

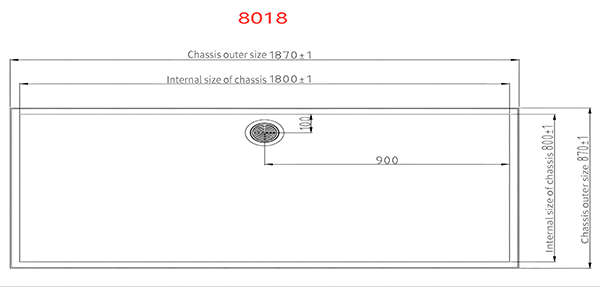

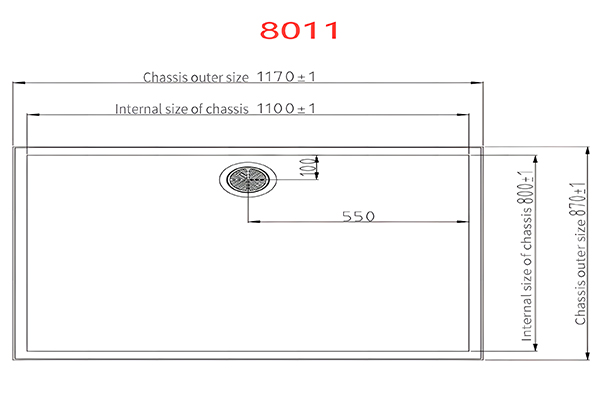

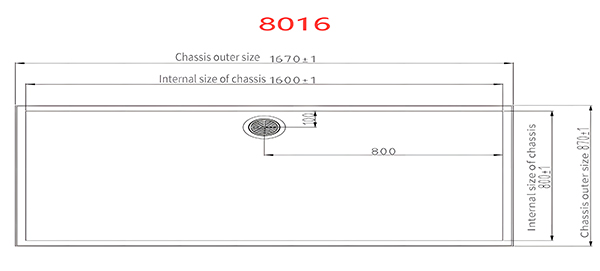

| SMC Molded Waterproof Chassis | 800x1600Light gray square | |
| Sliding door | 1600x2200Toughened glass sliding door | |

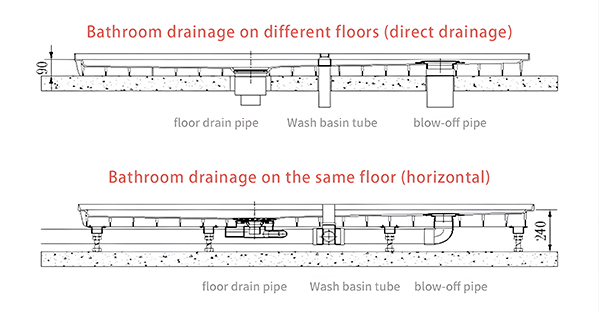

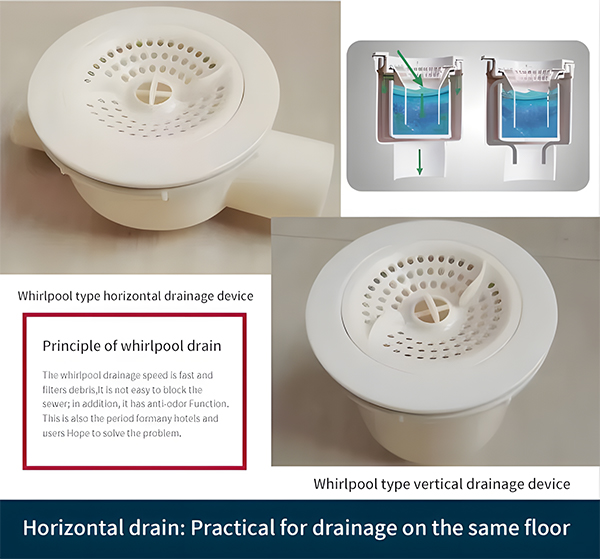

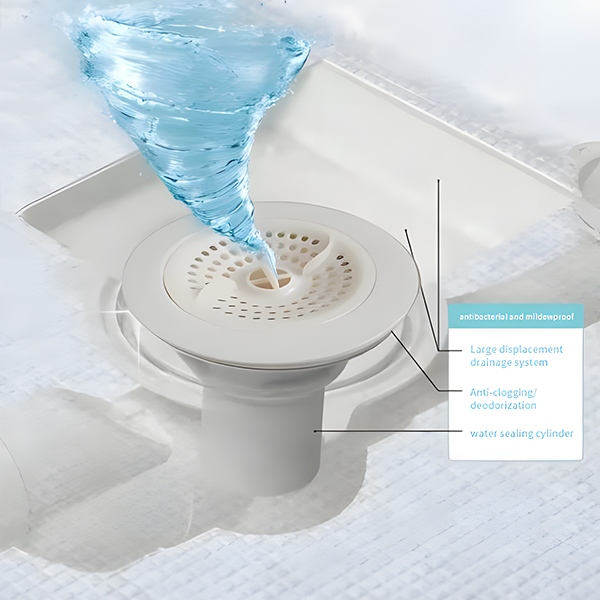

| Floor drain for whole bathroom | Horizontal or straight | |
| Accessories | part name | specification model(mm) |

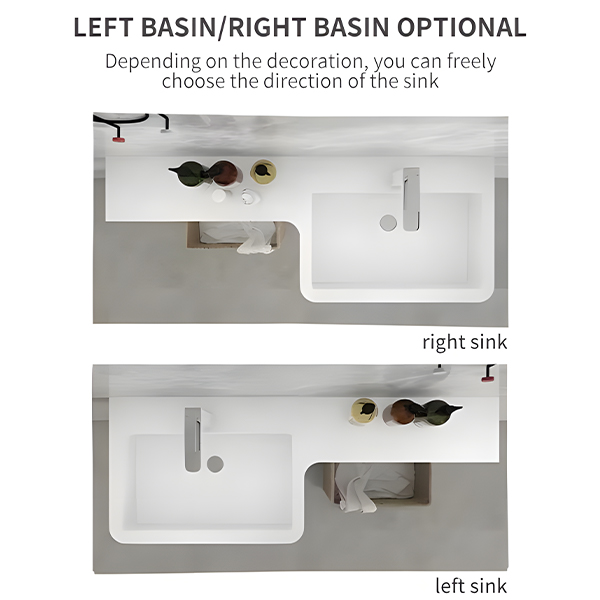

| face basin | SMC Molded P-Type Water Drop BasinL=1200 | |
| face basin bibcock | copper plating | |
| Basin water | flap type sewage | |
| cosmetic mirror | 500x700 mirror clip | |
| Square shelf | ABSwhite | |
| towel rack | L=400 ABS Base (white)+ stainless steel rod | |
| connected toilet | Ceramic top press type | |
| paper winder | ABSwhite | |
| shower | copper plating | |
| towel rack | L=400 ABS Base (white)+ stainless steel rod | |
| Triangle shelf | ABSwhite | |
| LED downlight | fozhao4W-4000k | |
| ventilator | 210x210 Open-hole white (including exhaust hose) | |
| waterproof socket | Five-hole/with splash box |
Product Features
Product features: SMC main body material
SMC polymer composite materials have a compact structure and can easily cope with high temperature and humidity environments. They have excellent properties such as corrosion resistance, antibacterial, non-pollution absorption, and service life. Therefore, they are widely used in re-electronic power, aerospace, sports equipment, building reinforcement, etc. fields.

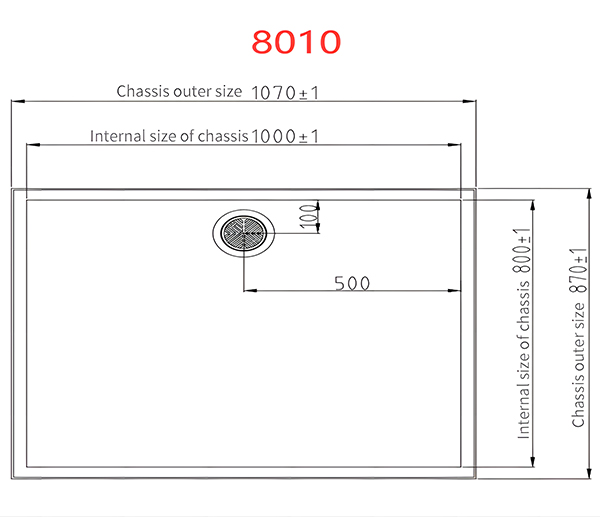

Technical point waterproofing plate:
1. SMC material (widely used in aircraft interior cabins and inner walls of motor cars) is light, dense, high strength, aging-resistant, and environmentally friendly
2. The chassis adopts a press of more than 2000 tons, and the molding temperature is 156 degrees. The chassis and water retaining flange are molded in one step without any cutting and splicing.
Connect, like an "ashtray", never leak.
3. It comes with a 12% water gradient and has a "bottom bottom" design. The floor drain is at a low point. As long as the chassis is flat, there will be no leakage.
4. The chassis thickness is 3.5mm, and the thickness including reinforcing ribs is 75mm, which enhances the strength of the chassis and ensures that the chassis does not deform.
5. The overall bathroom can be customized according to customer requirements.
