Product Details

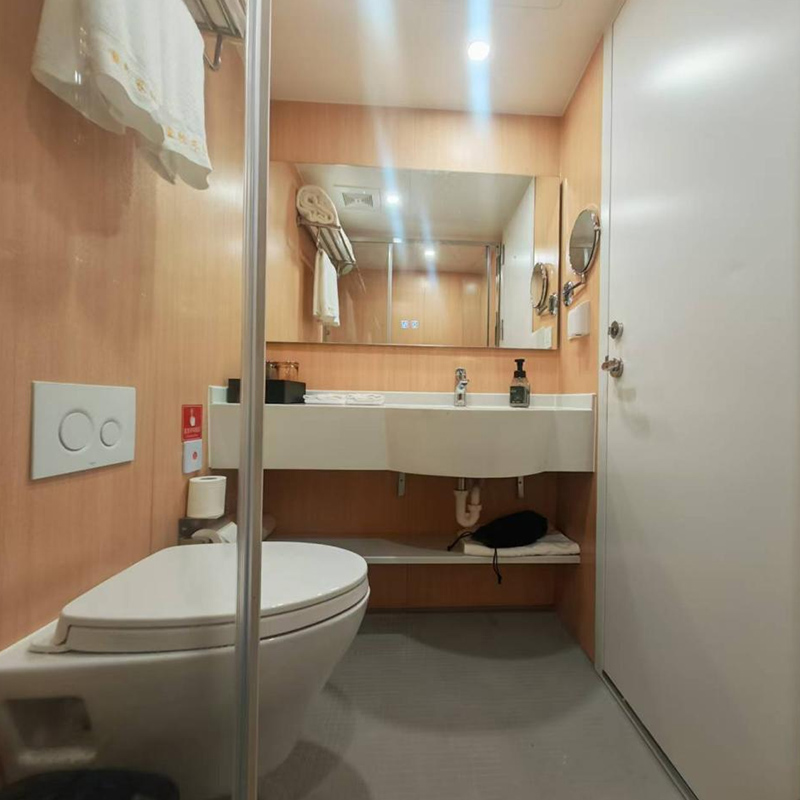

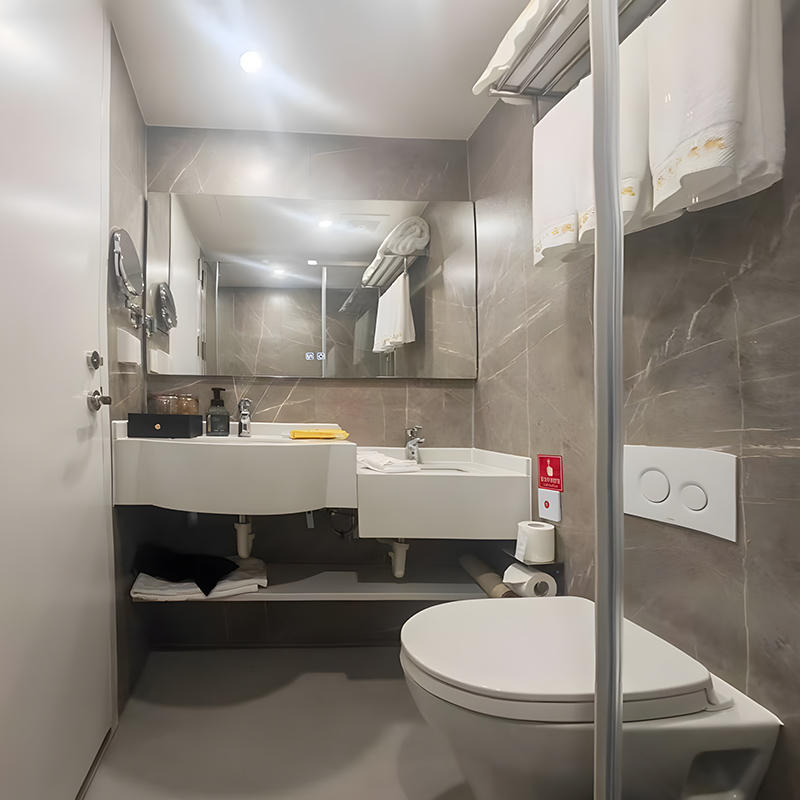

The Marine Integrated Sanitary Unit is a factory-standardized, prefabricated, and self-contained modular cabin that integrates full-function facilities for washing, showering, and toileting. Fully assembled and ready for immediate use simply by connecting water and power supplies, it is widely adaptable for use in the accommodation areas of cargo vessels, passenger ships, cruise liners, offshore platforms, and naval vessels. The unit complies with SOLAS and IMO FSS regulations, CCS Classification Society rules, and the CB/T 3723-2014 standard.
Structural Components
Base: Features an integral waterproof tray with raised edges on all sides to contain water. It is equipped with a centralized floor drain and a water trap (P-trap) to prevent odors and overflow. The four corners of the base are fitted with adjustable leveling bolts to facilitate leveling and secure installation.
Wall and Ceiling Panels: Constructed from Class A fireproof rock wool sandwich panels or flame-retardant Fiberglass Reinforced Plastic (FRP). The fire rating meets or exceeds the B-15 standard. The panels are tightly joined and sealed with sealant to ensure waterproofing, fire resistance, and vapor barrier integrity. The ceiling panel integrates an explosion-proof LED light, a ventilation fan, and an access hatch for maintenance.
Fire Protection: Equipped with a marine-grade Class B fireproof door, complete with a ventilation grille, fire-retardant sealing strips, and a door lock, thereby satisfying both fire compartmentation and ventilation requirements.
Standard Configuration
Sanitary Fixtures: Toilet, washbasin, shower unit, and non-slip shower tray. Hardware: Mirrored cabinet, toilet paper holder, towel rack, and storm grab bars.
Systems: Hot and cold water supply (using PPRC piping), greywater/blackwater drainage, lighting, and ventilation (featuring an explosion-proof fan).
Material Advantages
Factory-prefabricated and fully assembled, resulting in a significantly shortened installation cycle; features integrated waterproofing to ensure zero leakage; highly resistant to corrosion and vibration, making it ideally suited for harsh marine environments.
