SMC Fabricated Bathroom
09 Series Integration Sanitary Bathroom is a high-end integral bathroom solution with modular design, factory prefabricated, and rapid installation. This product is characterized by waterproof, moisture-proof, durable and environmentally friendly. It is suitable for various scenarios such as houses, hotels, hospitals, apartments, ships, etc., and provides one-stop bathroom space assembly services.
Porduct Advantages
All-in-One Design
Integrate shower, toilet, sink, and drainage system into one to reduce joints and eliminate leaks.
Support customized size and layout to adapt to different building structures.
Premium Materials
SMC (Sheet Molding Compound) composite material or aviation grade aluminum honeycomb panel with high strength, anti-corrosion and antibacterial properties.
The surface is smooth and easy to clean, and will not be yellowed or cracked after long-term use.
Modular and Fast Installation
Dry construction eliminates the need for traditional tiling and waterproofing treatment, and the installation can be completed in 1-2 days, saving 70% of the construction period.
Suitable for prefabricated buildings, renovation of old houses, and emergency projects (such as hospitals, temporary housing).
Smart Bathroom Options
Optional smart toilets, constant temperature showers, mirror defogging, LED lighting and other technological components can be selected.
Support IoT connectivity (such as water leakage monitoring, remote control).
Eco-Friendly
Materials can be recycled to reduce construction waste
Water-saving design (low-flow toilets, air-injected faucets).
Product features

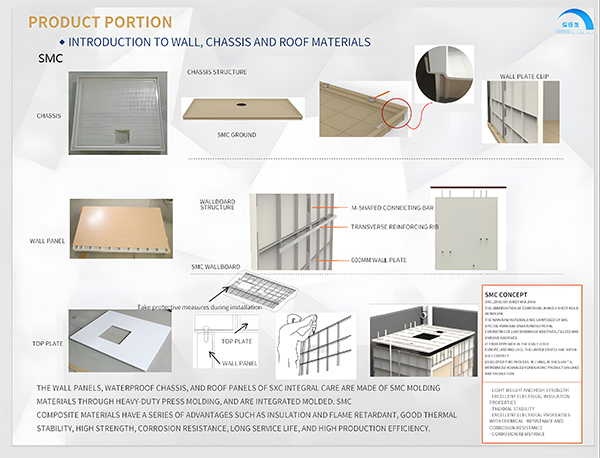

SMC main body material
SMC polymer composite materials have a compact structure and can easily cope with high temperature and humidity environments. They have excellent properties such as corrosion resistance, antibacterial, non-pollution absorption, and service life. Therefore, they are widely used in re-electronic power, aerospace, sports equipment, building reinforcement, etc. fields.
Technical point waterproofing plate:
1. SMC material (widely used in aircraft interior cabins and inner walls of motor cars) is light, dense, high strength, aging-resistant, and environmentally friendly

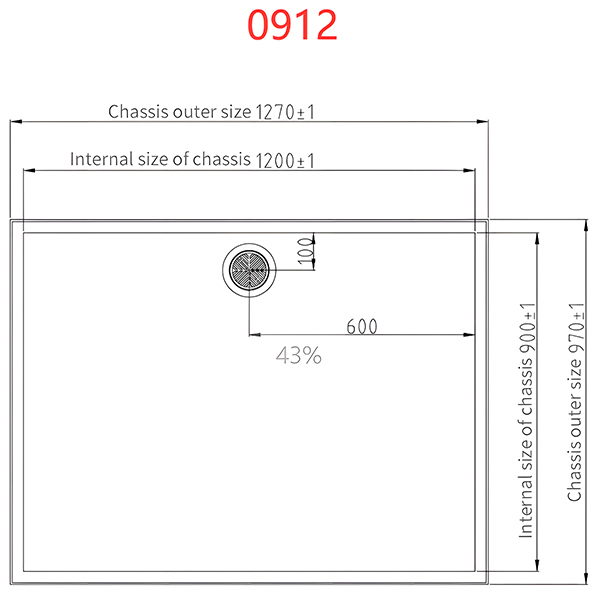

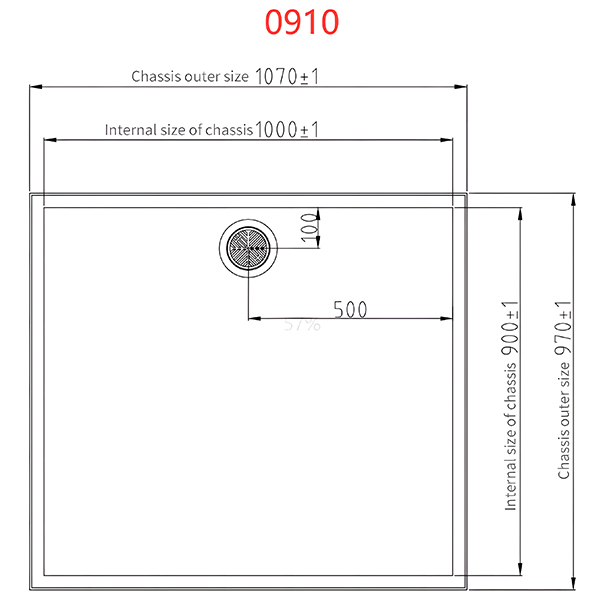

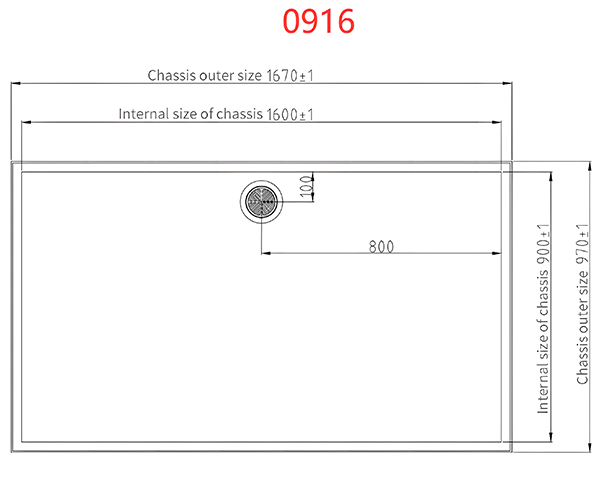

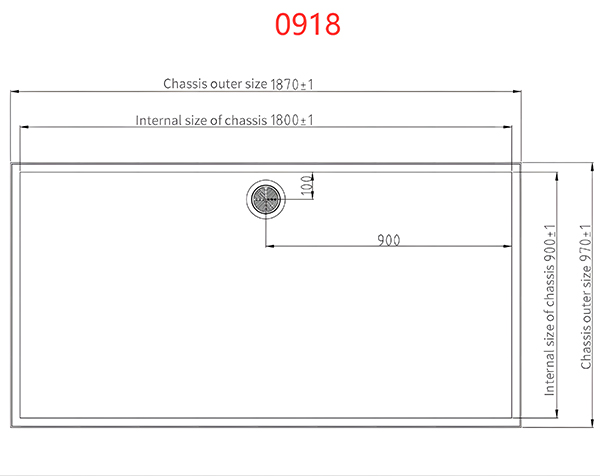

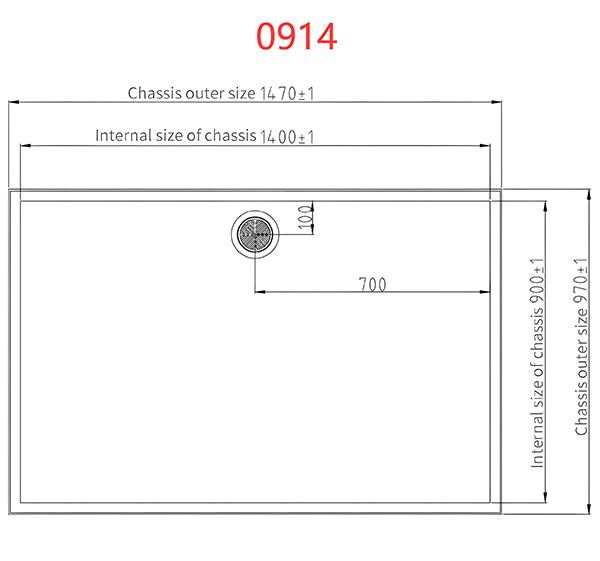

2. The chassis adopts a press of more than 2000 tons, and the molding temperature is 156 degrees. The chassis and water retaining flange are molded in one step without any cutting and splicing.
Connect, like an "ashtray", never leak.
3. It comes with a 12% water gradient and has a "bottom bottom" design. The floor drain is at a low point. As long as the chassis is flat, there will be no leakage.

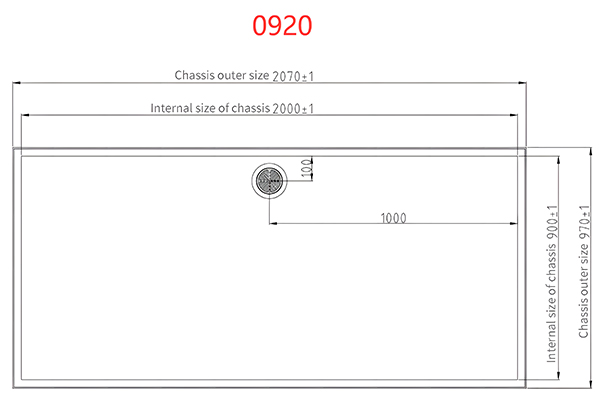

4. The chassis thickness is 3.5mm, and the thickness including reinforcing ribs is 75mm, which enhances the strength of the chassis and ensures that the chassis does not deform.
5. The overall bathroom can be customized according to customer requirements.

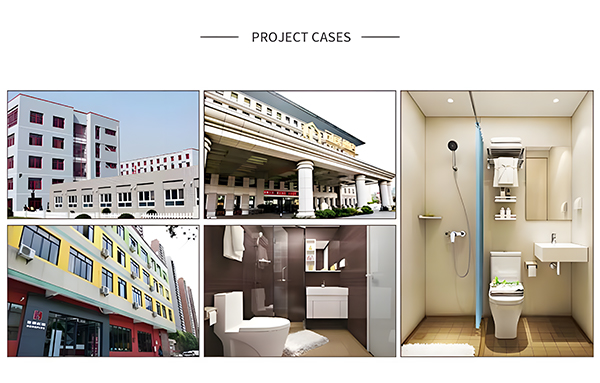

Product Application

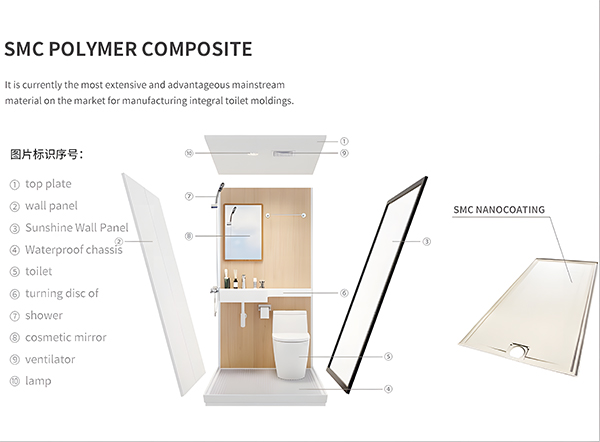

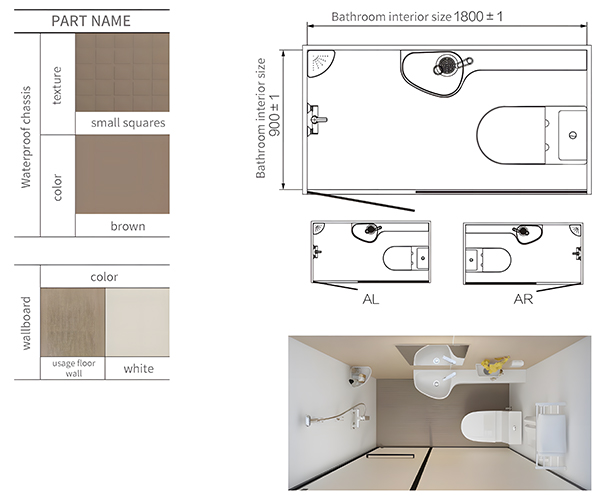

Product details
| body | part name | specification model(mm) |
| SMC Molded Top Cover | 900x1800White flat top | |
| SMC Molded Wall Panel | H=2200 White/Light Wood Grain | |
| SMC Molded Waterproof Chassis | 900x1800 brown squares | |
| glass door | 1800mm×2200mm glass swing door | |
| Floor drain for whole bathroom | Horizontal or straight | |
| accessories | part name | specification model(mm) |
| face basin | SMC Molded P-Type Water Drop BasinL=1200 | |
| face basin bibcock | copper plating | |
| Basin water | flap type sewage | |
| cosmetic mirror | 500x700 mirror clip | |
| Square shelf | ABSwhite | |
| towel rack | L=400 ABS Base (white)+ stainless steel rod | |
| connected toilet | Ceramic top press type | |
| paper winder | ABSwhite | |
| shower | copper plating | |
| towel rack | L=400 ABS Base (white)+ stainless steel rod | |
| Triangle shelf | ABSwhite | |
| LED downlight | fozhao4W-4000k | |
| ventilator | 210x210 Open-hole white (including exhaust hose) | |
| waterproof socket | Five-hole/with splash box |
