The meter box has better physical, chemical properties and mechanical strength than gas meter boxes such as plastic, metal, and hand-laid FRP. It has the functional effects of being more convenient to install and use, and more thoughtful and strict user management. The surface of the box is printed with color separation screen with good visual effects, and it also has advertising functions to beautify the community environment, warn safety, and highlight customers 'beautiful corporate image. This meter box is widely used in centralized gas management systems in urban residential areas and high-low-rise buildings. It is safe and beautiful to use.
Technical requirements
1. The meter box meets the style standard requirements of China Resources and Hong Kong Gas meter box, and the overall size error of all products is within ± 10mm;
2. The outer frame of the cabinet is firm and durable, the cabinet door opens and closes smoothly, the door lock is firm and reliable, and the door shaft is firmly welded;
3. The appearance marks and handwriting of the meter box should be clear and complete;
4. The material of the observation window glass of the meter box shall be polycarbonate glass;
5. The observation window of the meter box is rain-proof and does not leak, and the window glass is easy to replace;
6. The wall thickness of the meter box is not less than 3mm, and the outdoor service life is more than 20 years.
7. The watch box lock should be a hidden lock, and should be made of plastic and other materials that are not easy to rust, and the key can be universally used.
Product performance
1. The glass fiber content in the meter box material shall not be less than 23%;
2. The flame retardant rating of the meter box is V-0;
3. The raw materials of the product must be added with an anti-ultraviolet formula, so that the color will not change when placed;
4. Tensile strength ≥50MPA; Simply supported beam impact strength ≥35KJ/M; elongation at break ≥1.00%; bending strength ≥100MPA; Barfield hardness ≥50HBA; dry heat test 100℃±2℃/5H has no change; water absorption ≤0.5%; shrinkage ≤0.2%; oxygen index ≥20%;
5. Compression resistance: 50KG heavy object (contact area 10× 10CM), place it in any position (except glass windows) for 3 minutes (standard models 1, 2, and 3), the box will be free from damage;
6. Impact resistance: Use a steel ball with a weight of 0.5KG and fall freely from a height of not less than 1000 mm. After the meter box is impacted, the surface of the meter box should have no obvious damage, penetration damage, etc.(except for the window), The meter box structure has no deformation, and the connectors have no obvious loosening, etc.;
7. Load-bearing performance: Hang the meter box on the wall, apply a load of ≥10 times the weight of the meter box on the top of the meter box, and let it stand for 2 hours. The meter box should be stable without damage, damage, deformation, and loose connections.
8. Low-temperature performance: placed at-20 ± 2 ℃ for 4H, the box will not deform or crack;
9. High temperature performance: No obvious corrosion occurs when placed at 60℃±2℃ for 4H.

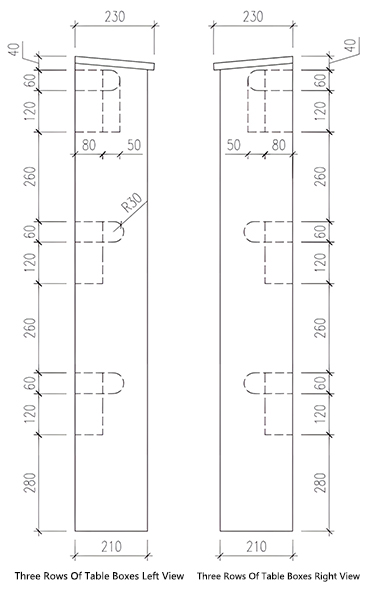

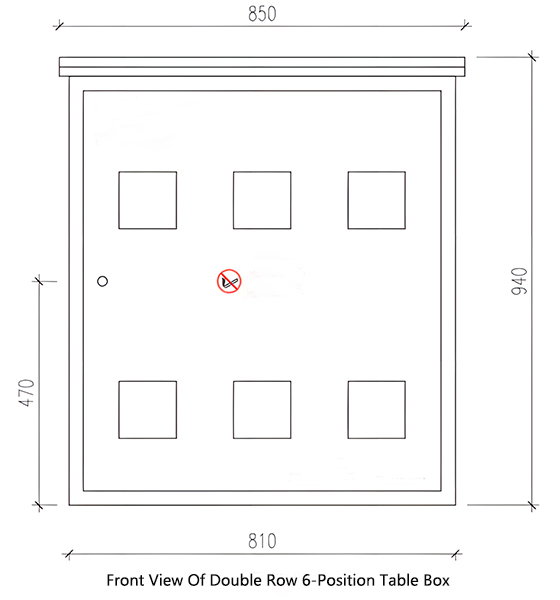

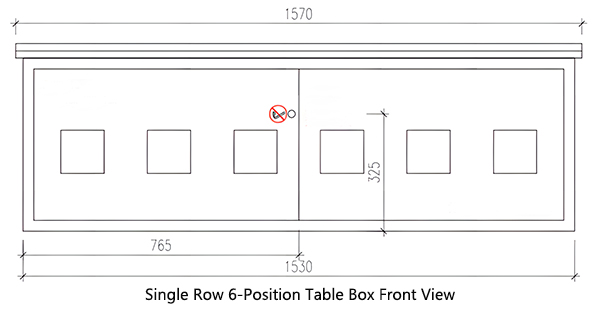

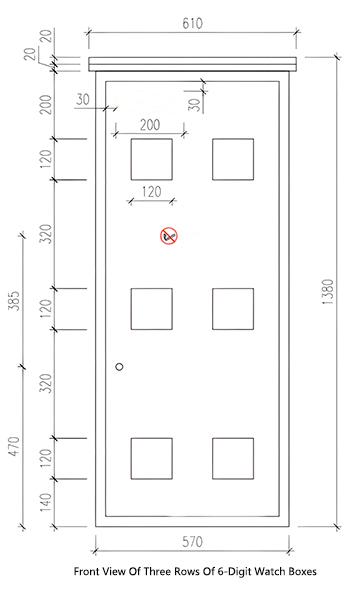

Product specifications
Why International Buyers Choose Us
It has more than 300 employees, 12 R & D personnel, 11 full-time testing personnel, and 13 sales and service personnel
Dedicated to the research and development and production of SMC and BMC materials for 17 years
Physical factory, covering an area of 90 acres, factory direct sales, reduce costs, and serve customers
The company has more than 30 types of various testing equipment needed in the entire product chain
All products undergo strict on-site testing to ensure they meet quality standards and have multiple honorary qualifications
SMC workshop, molding workshop, assembly workshop, paint workshop, sheet metal workshop, assembly workshop and injection molding workshop have been established.
Our company uses a new composite material SMC to produce gas meter and flowmeter boxes. The box produced by this material is beautiful and generous, and is currently widely used. It has been in use for nearly ten years. The newly developed SMC molded gas meter box is a sheet-like mold material mixed with more than a dozen composite materials such as unsaturated polyester resin, glass fiber, low shrinkage, calcium powder, and various additives, and formed by a forging machine at high temperature and high pressure. It has the advantages of excellent corrosion resistance, insulation, flame retardant, light weight, beautiful appearance, inability to recycle, and long service life (outdoor design service life can reach more than 40 years, indoor design service life can reach more than 60 years).
