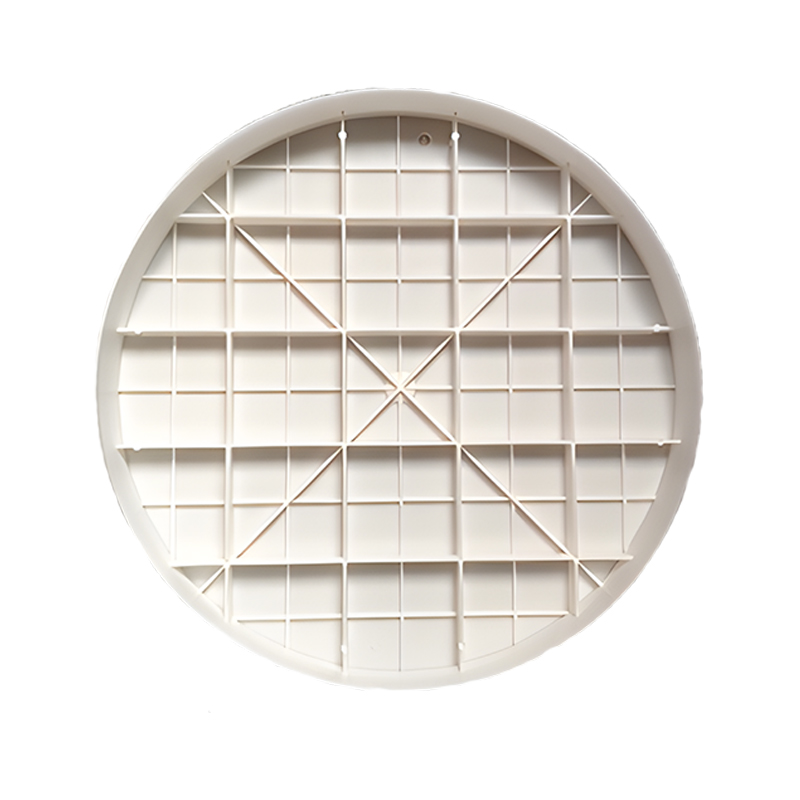

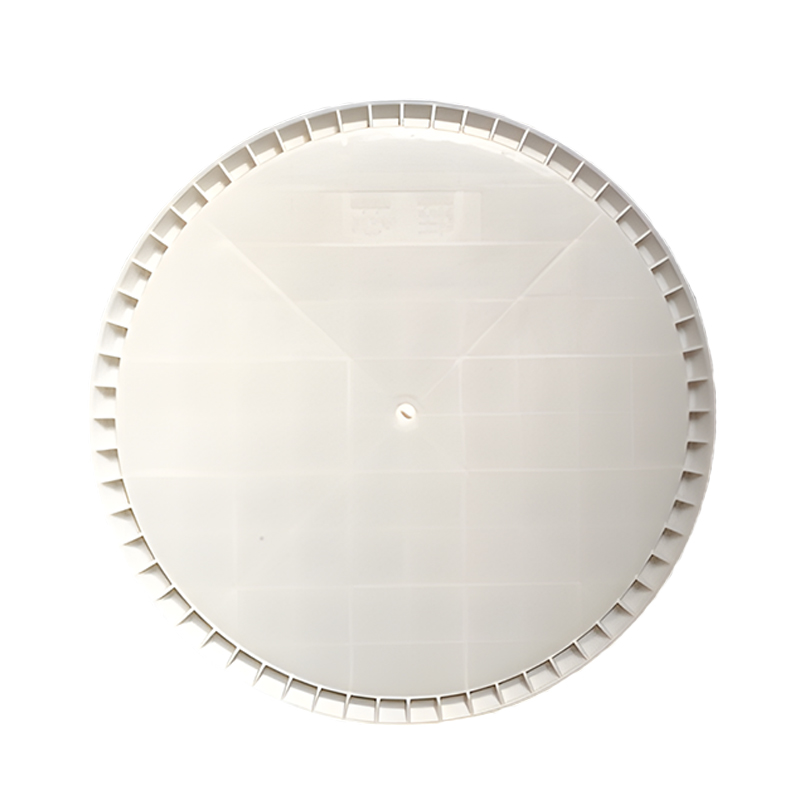

Characteristics of SMC Waffle board cover plate products
1. Mechanically automated production; shortens forming operations; is competitive.
2. It can be mass produced; the product has high reproducibility; and the size precision is high.
3. The finished product is integrally formed and can be made into complex shapes without welding.
4. The material has non-rust, high temperature resistance, high strength, voltage resistance, flame resistance, antibacterial, corrosion resistance, and water resistance.
5. Conductive agents can be added to polymer materials to make products have conductive functions.
6. The surface is smooth, no extra paint is needed, and there is no paint falling problem.
Introduction to SMC Wafle Board Material and Fomming
1. Product requirements
Tensile strength: 50Mpa or more (according to ASTM D3039 test method)
Flexural strength: above 100Mpa (according to ASTM D790 test method)
Bending modulus: 8000Mpa or more (according to ASTM D790 test method)
Glass fiber content: 25%±5%(according to ASTM D2584 test method)
Flame retardant index: Comply with UL/HB (according to UL94 Burning Performance Test Method)
Oxygen index: ≥28 (according to GB/8624-1997 test method)
Acid and alkali resistance: According to GB3857 acid and alkali resistance test method, there is no change within 24 hours.
Analysis of VOC organic volatiles: according to GB18586-2001 (limit for hazardous substances in interior decoration and decoration materials)
2. Allowable error
long. Width: 1200mm, allowable tolerance +0-2mm
Pipe height: The nozzle plane of a 645-995mm straight pipe must be at right angles to the axis of the straight pipe, and the allowable tolerance is ± 1mm;
Pipe wall thickness: 4mm, allowable tolerance-0.5 mm, cylinder mouth end face local reinforcement>4mm
Aperture: Upper aperture 350-380mm, allowable tolerance is ±0.2% of design size

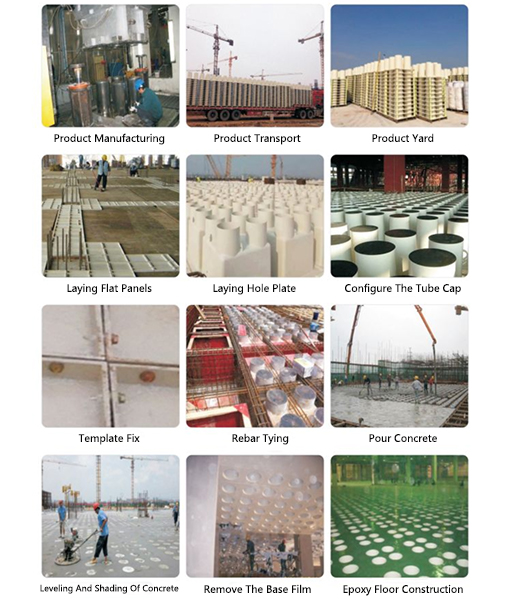

SMC formwork on-site construction steps

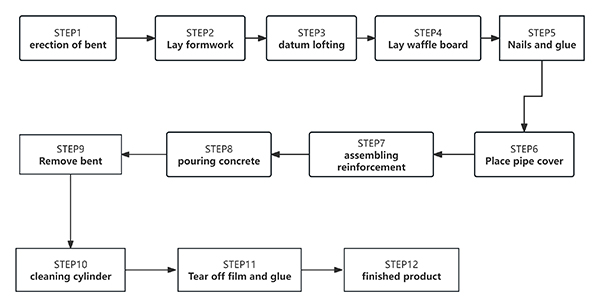

Waffle board production and construction process
ABOUT RUNFA
Runfa Residential Technology (Changzhou) Co., Ltd. The company's registered capital is 62.88 million yuan and currently employs more than 300 people.
Runfa Residential Technology is mainly engaged in the research and development and production of SMC and BMC materials, and has gradually built an industrial chain with communications, power, overall sanitary ware, and environmental protection products as its main business goals. Its main products include:
1.Production of raw materials for SMC and BMC
2. Communication category: optical cable junction box, optical cable distribution box and sheet metal box
3. Power category: SMC materials such as TTU, FTU, and DTU and sheet metal boxes
4. Integral bathroom category: SMC molded top plate, wall plate and chassis, SMC mirror cabinet, SMC integrated basin
5. Environmentally friendly product categories: SMC waffle boards, etc.
6. Gas meter box: SMC molded gas meter box, stainless steel gas meter box
Runfa Residential Technology has strong production and processing capabilities. Currently, its main production and processing equipment includes 2 lines of SMC units, which can achieve an annual output of 30,000 tons, 30 hydraulic presses of various types, 11 injection molding machines, more than 10 sheet metal processing equipment such as digital punching, laser, and digital folding, and 4 pigtail production lines. The company has established a total of 7 workshops: SMC workshop, molding workshop, assembly workshop, painting workshop, sheet metal workshop, assembly workshop and injection molding workshop.
Runfa Residential Technology has a complete variety of box products and a large scale of SMC product production and processing in the communications industry and power grid industry. It has become one of the major suppliers in the national communications industry and power grid industry. The company adheres to the business philosophy of putting quality first and user satisfaction, and continuously improves the quality management system. It has passed ISO9001 quality management system certification.
