Product details

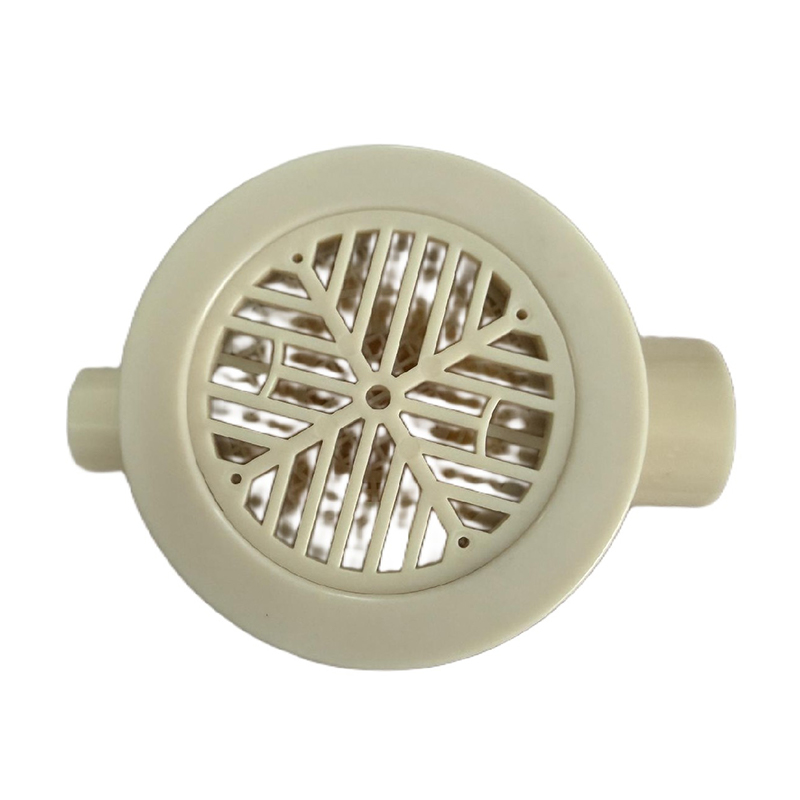

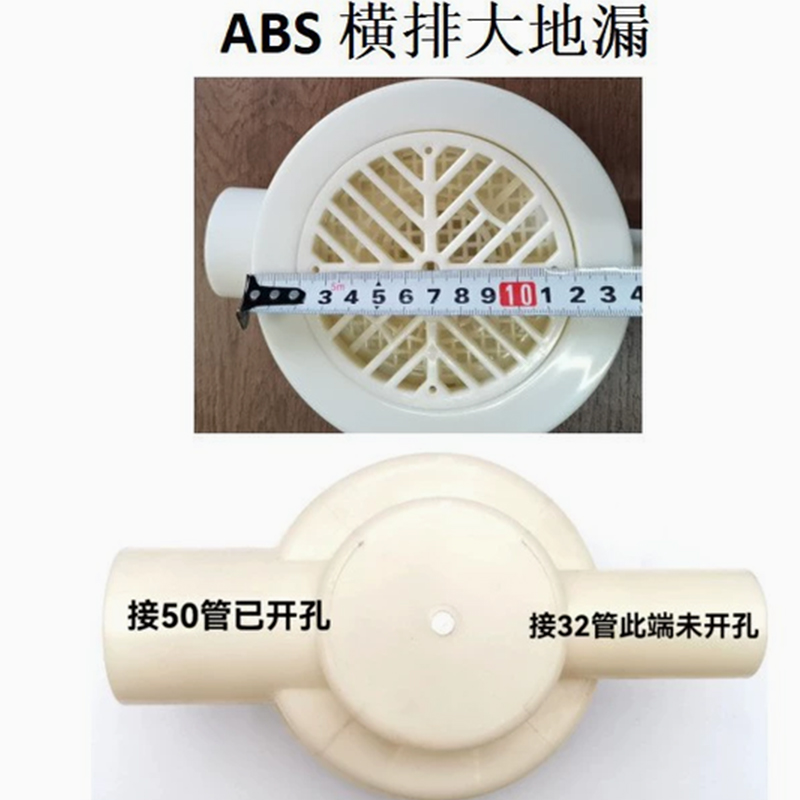

110 mm Horizontal Outlet Floor Drain is an important drainage accessory of the prefabricated integrated bathroom system. It is mainly used for the drainage connection of the shower area and bathroom chassis, and undertakes the functions of connecting floor drainage and pipes.
The product is designed based on the structural characteristics and drainage requirements of the integrated bathroom chassis. The corresponding floor drain specifications and installation plan can be selected according to the drainage method, chassis opening position and pipe connection requirements of the project.
As an important part of the overall bathroom supporting system, SMC floor drain can be used in conjunction with SMC waterproof chassis, wall panels and related connection accessories.
Material advantages
1. Drainage design · Meet the needs of bathroom use
The structural design is based on the drainage requirements of the bathroom space, and the chassis water guide structure and drainage pipes are used to realize the drainage function of the bathroom area.
2. Structural adaptation·Easy to install and connect
Select the appropriate model according to the chassis opening, pipe specifications and installation space to facilitate the connection between the floor drain and the SMC chassis and drainage system.
3. Sealed connection · Pay attention to installation details
Through adapted sealing rings, connectors and standardized installation processes, the sealing effect of the connection between the floor drain and the chassis is improved, and the risk of leakage due to improper installation is reduced.
4. Easy maintenance·Easy for daily cleaning

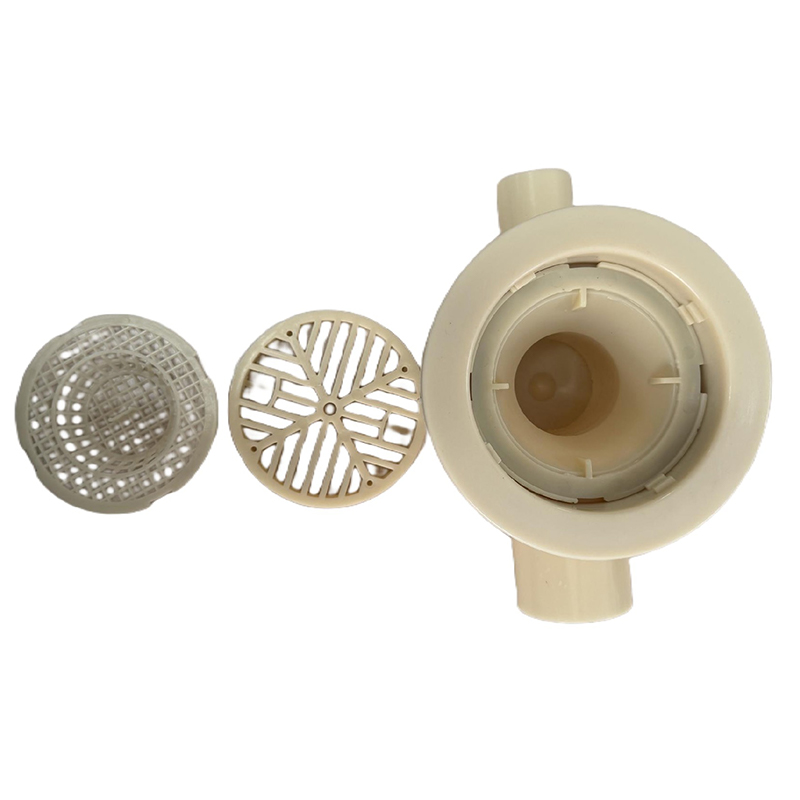

The floor drain cover or filter components can be cleaned and maintained according to the specific product structure to reduce the impact of accumulation of hair and debris on drainage.
5. System matching · Suitable for prefabricated bathrooms
It can be used in conjunction with SMC chassis, SMC wall panels, foot supports and other accessories to meet the installation and drainage needs of the overall bathroom system.
Overall bathroom structure
It is integrated with the main body, sanitary ware, fresh air, lighting, artificial intelligence and other modules, and cooperates with the scientific and reasonable bathroom space layout design to realize the five bathroom functions of bathing, toileting, storage, lighting and ventilation.
Exploded view of assembled integrated bathroom
Overall bathroom advantages
Quick installation
Adopting prefabricated construction and "building block" installation, it takes 4 hours and 8 steps to complete the installation of a complete bathroom, which is ready to use.
Effectively prevent clogging and suppress odor return
Traditional bathrooms are leaking, smelly, clogged, and difficult to clean. Yunfa's innovative integrated bathroom technology overcomes various problems and uses a patented floor drain to prevent blockage and eliminate smelly return!
Watertight and anti-seepage
The SMC integrated bathroom waterproof tray has a large surface contact angle, good water flow, and less residue; it is also equipped with a 12%-16% water flow slope for faster drainage.
Easy to clean
Curved corners: no 90° dead corners, easy to clean, and avoid hiding dirt and evil people and practices
Glue-free: The structure is waterproof and glue-free to avoid yellowing and mildew. The product is tested for stain resistance and the recovery rate can reach 90%.
One stop solution
Prefabricated integrated bathrooms provide integrated design, factory production, assembly construction, and one-stop after-sales overall bathroom system solutions.
