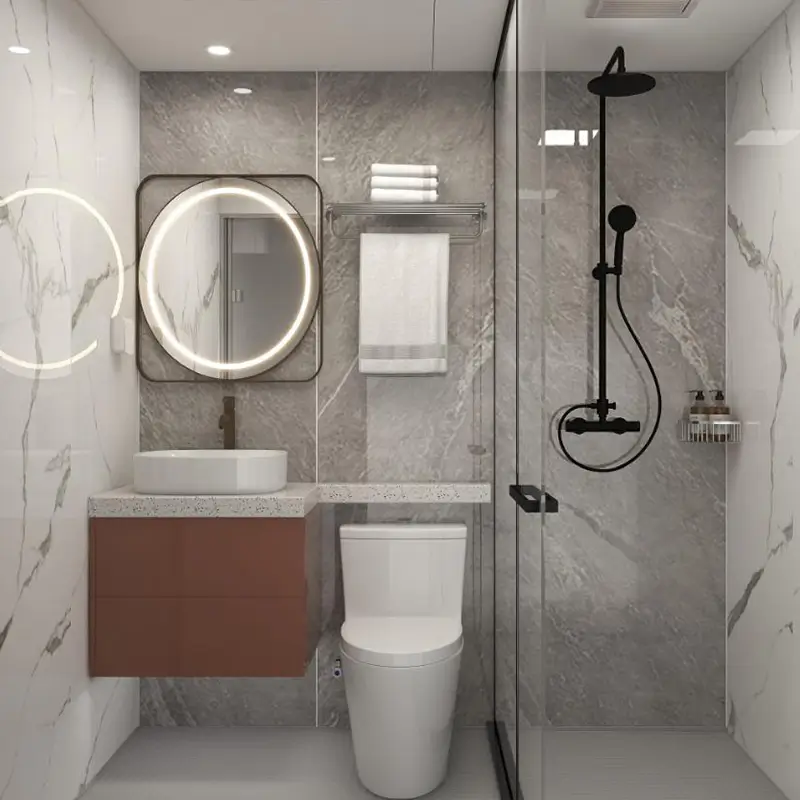

14 Series Waterproof Modular Bathroom is a high-end integral bathroom solution with modular design, factory prefabricated, and rapid installation. This product is characterized by waterproof, moisture-proof, durable and environmentally friendly. It is suitable for various scenarios such as houses, hotels, hospitals, apartments, ships, etc., and provides one-stop bathroom space assembly services.
Key Features & Competitive Advantages
All-in-One Design
Integrate shower, toilet, sink, and drainage system into one to reduce joints and eliminate leaks.
Support customized size and layout to adapt to different building structures.
Premium Materials
SMC (Sheet Molding Compound) composite material or aviation grade aluminum honeycomb panel with high strength, anti-corrosion and antibacterial properties.
The surface is smooth and easy to clean, and will not be yellowed or cracked after long-term use.
Modular and Fast Installation
Dry construction eliminates the need for traditional tiling and waterproofing treatment, and the installation can be completed in 1-2 days, saving 70% of the construction period.
Suitable for prefabricated buildings, renovation of old houses, and emergency projects (such as hospitals, temporary housing).
Smart Bathroom Options
Optional smart toilets, constant temperature showers, mirror defogging, LED lighting and other technological components can be selected.
Support IoT connectivity (such as water leakage monitoring, remote control).
Eco-Friendly
Materials can be recycled to reduce construction waste
Water-saving design (low-flow toilets, air-injected faucets).
Product Application
Product details

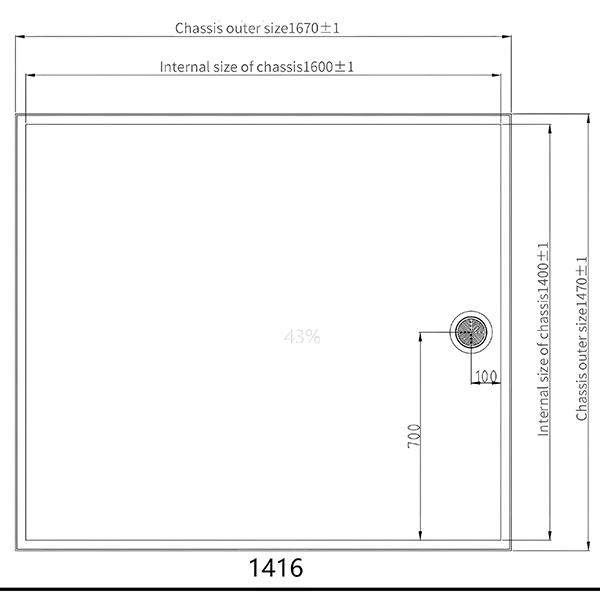

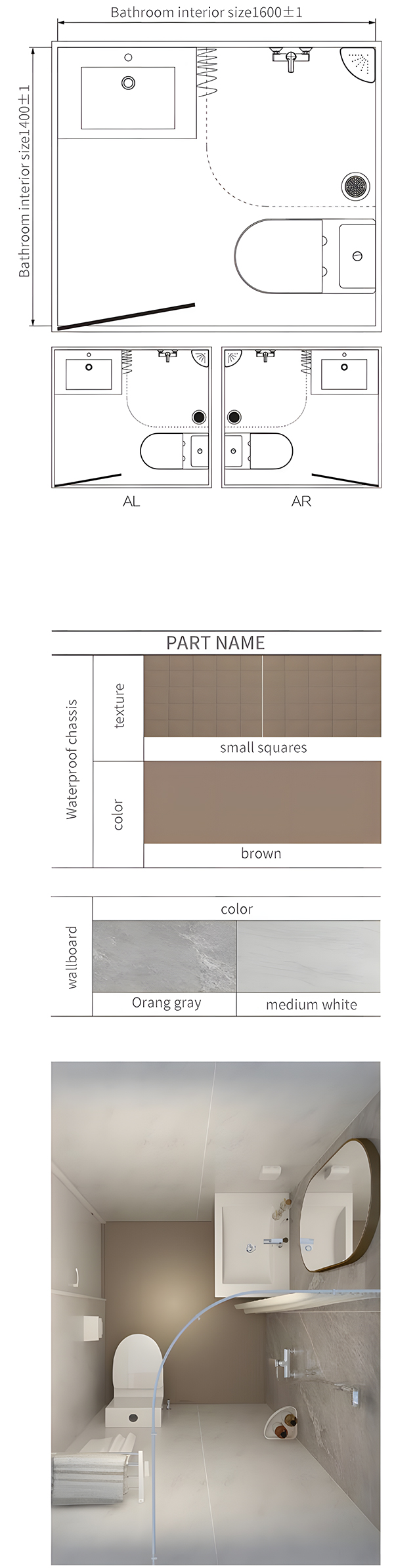

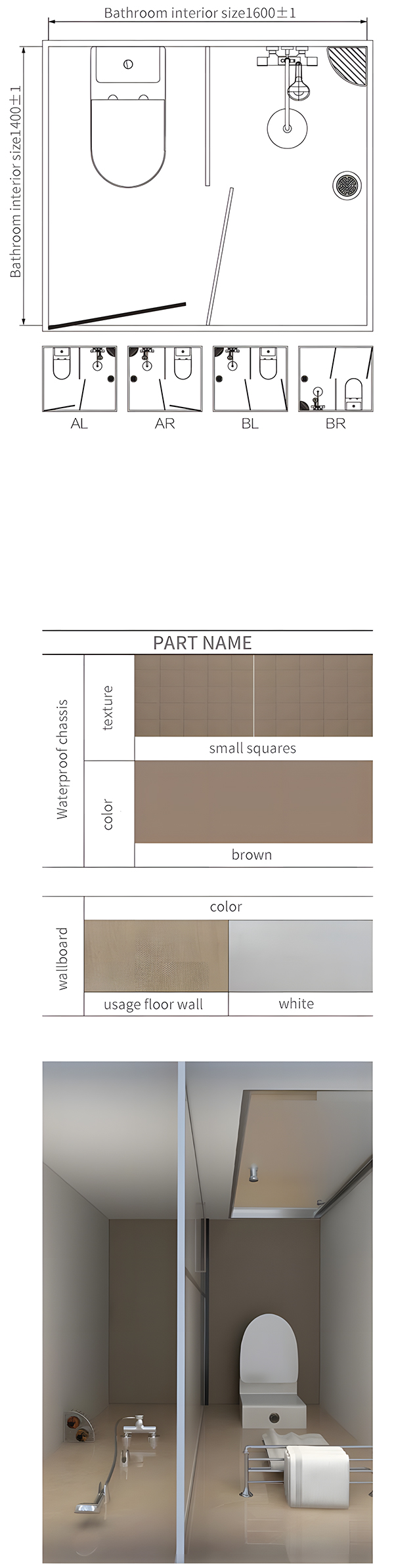

1416 Product details
| Main body | Component name | specification model(mm) |
| SMC Mold - Pressed Top Cover | 1400x1600 White Flat Top | |
| SMC Mold - Pressed Wall Panel | H=2200 Light Wood Grain / White | |
| SMC Mold - Pressed Waterproof Floor | 1400x1600 Coffee - colored Small Squares | |
| Glass Door | 700x2000 Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge/Vertical Discharge | |
| Accessories | Component Name | specification model(mm) |
| Towel and Bath Towel Rack | L=400 Copper Chrome - Plated | |
| One - piece Toilet | Ceramic Top - Press Type | |
| Toilet Paper Holder | Copper Chrome - Plated | |
| Shower Head | Copper Chrome - Plated | |
| Bath Towel Screen | 1400x2000 One - line Swing - open | |
| Triangular Shelf | Copper Chrome - Plated | |
| LED Downlight | Foshan Lighting 4W - 4000k | |
| Warm Air Blower | 300x600 Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole/with Splash - proof Cover |
| Main Body | Component Name | Specification Model (mm) |
| SMC Mold - Pressed Top Cover | 1400x1600 White Flat Top | |
| SMC Mold - Pressed Wall Panel | H = 2200 Aolang Gray/Medium White | |
| SMC Mold - Pressed Waterproof Floor | 1300x1800 Coffee - colored Small Squares | |
| PC Door | 700x2000 Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge/Vertical Discharge | |
| Accessories | Component Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 700x460x550 Under - counter Basin/with Bathroom Cabinet | |
| Wash Basin Faucet | Copper Chrome - Plated | |
| Wash Basin Drain | Flap - type Drain | |
| Vanity Mirror | 500x890x40 Oval Mirror with Aluminum Alloy Frame | |
| Towel Rack | L = 400 ABS Base (White) + Stainless Steel Rod | |
| One - piece Toilet | Ceramic Top - Press Type | |
| Toilet Paper Holder | ABS White | |
| Shower Head | Copper Chrome - Plated | |
| Bath Towel Rack | L = 400 ABS Base (White) + Stainless Steel Rod | |
| Shower Curtain | L=1500 with Shower Curtain Fabric, Arc-shaped Ceiling-mounted | |
| Triangular Shelf | ABS White | |
| LED Downlight | Foshan Lighting 4W - 4000k | |
| Exhaust Fan | 210x210 Opening White (with Exhaust Hose) | |
| Waterproof Socket | Five - hole / with Splash - proof Cover |

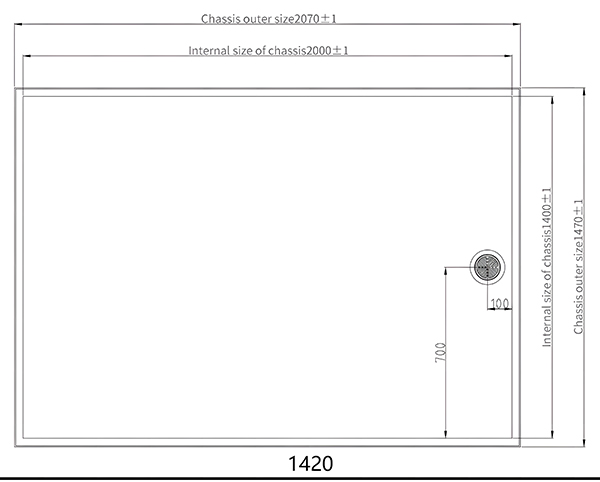

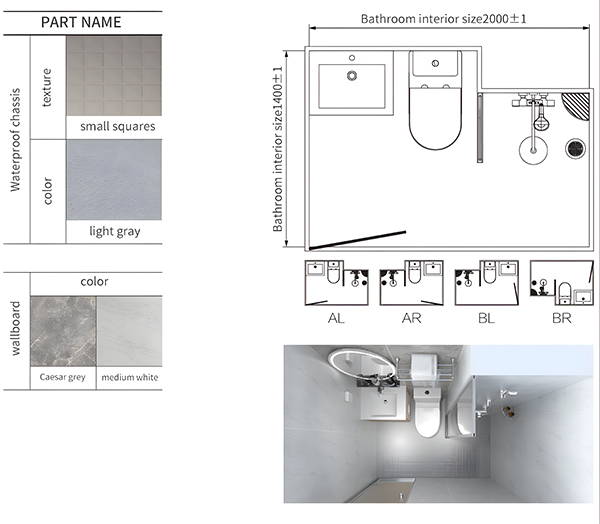

1420 Product details
| Main Body | Component Name | Specification Model (mm) |
| SMC Mold - Pressed Top Cover | 1400x2000 White Flat Top | |
| SMC Mold - Pressed Wall Panel | H = 2200 Caesar Gray/Medium White | |
| SMC Mold - Pressed Waterproof Floor | 1400x2000 Light Gray Small Squares | |
| Glass Door | 700x2000 Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge/Vertical Discharge | |
| Accessories | Component Name | Specification Model (mm) |
| Wash Basin/Bathroom Cabinet | 600x460x550 Under - counter Basin / with Bathroom Cabinet | |
| Wash Basin Faucet | Copper Chrome - Plated | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 600x800x25 with Aluminum Alloy Frame / LED Light Strip / Storage Partition | |
| Towel and Bath Towel Rack | L = 400 Copper Chrome - Plated | |
| One - piece Toilet | Ceramic Top - Press Type | |
| Toilet Paper Holder | Copper Chrome - Plated | |
| Shower Head | Copper Chrome - Plated | |
| Shower Partition | 500x2200 Floor - to - Ceiling | |
| Triangular Shelf | Copper Chrome - Plated | |
| LED Downlight | Foshan Lighting 4W - 4000k | |
| Warm Air Blower | 300x600 Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole / with Splash - proof Cover |

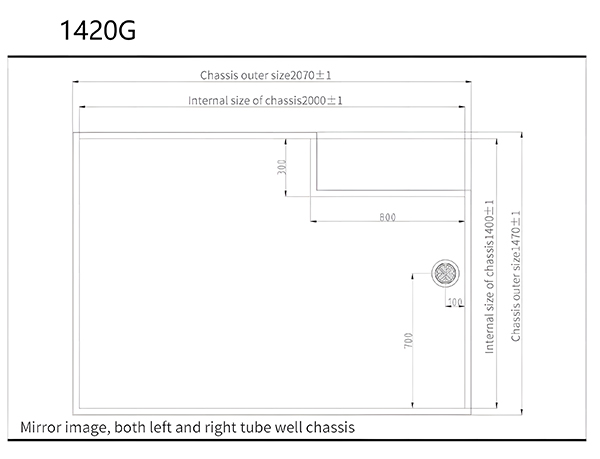

1420G Product details
| Main Body | Component Name | Specification Model (mm) |
| SMC Mold - Pressed Top Cover | 1400x2000 White Flat Top | |
| SMC Mold - Pressed Wall Panel | H = 2200 Aolang Gray / Fish - belly White | |
| SMC Mold - Pressed Waterproof Floor | 1400x2000 Light Gray Small Squares | |
| Glass Door | 700x2000 Glass Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge/Vertical Discharge | |
| Accessories | Component Name | Specification Model (mm) |
| Wash Basin / Bathroom Cabinet | 600x460x550 Above - counter Basin / with Bathroom Cabinet | |
| Wash Basin Faucet | Copper Chrome - Plated | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror | 630x700x25 with Aluminum Alloy Frame, Oval Mirror, with LED Light Strip | |
| Towel Rack | L = 400 Copper Chrome - Plated | |
| One - piece Toilet | Ceramic Top - Press Type | |
| Toilet Paper Holder | Copper Chrome - Plated | |
| Shower Head | Copper Chrome - Plated | |
| Shower Screen | 1400x2000 One - line Swing - open | |
| Triangular Shelf | Copper Chrome - Plated | |
| LED Downlight | Foshan Lighting 4W - 4000k | |
| Warm Air Blower | 300x600 Three - in - one Warm Air Blower | |
| Waterproof Socket | Five - hole / with Splash - proof Cover |

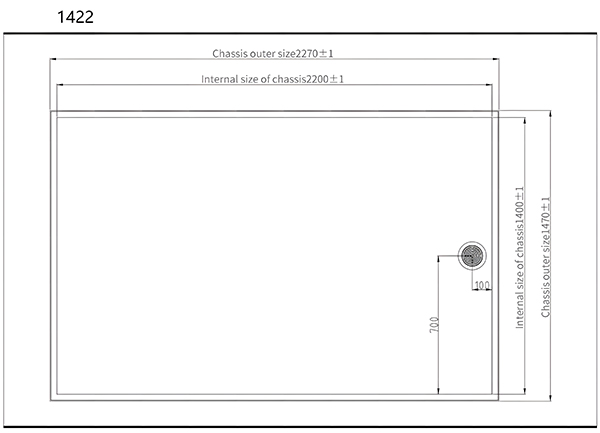

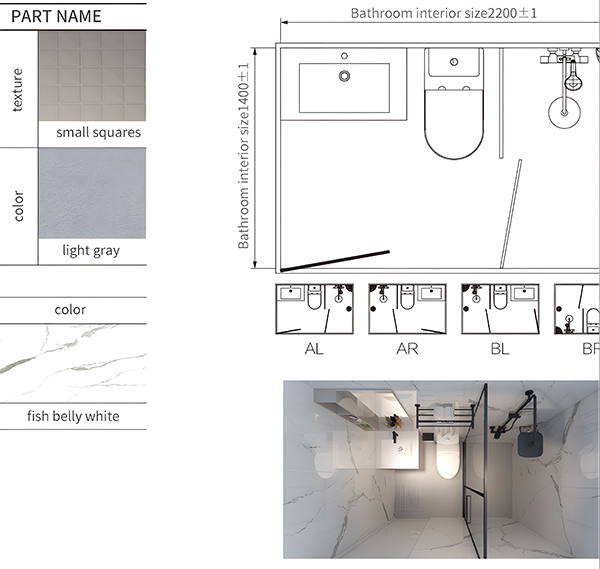

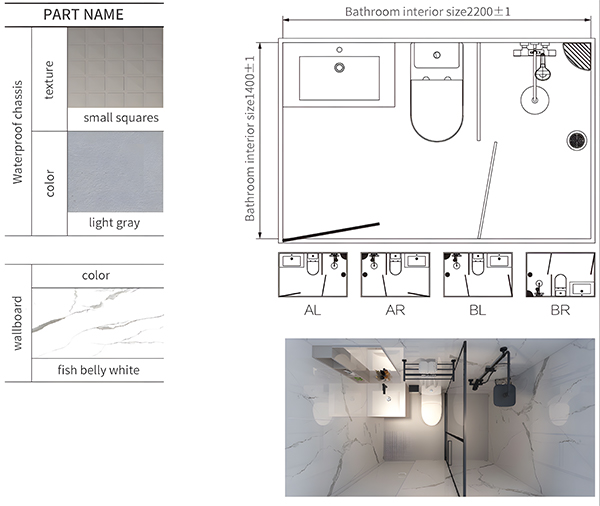

1422 Product details
| Main Body | Component Name | Specification Model (mm) |
| SMC Mold - Pressed Top Cover | 1400x2200 White Flat Top | |
| SMC Mold - Pressed Wall Panel | H = 2200 Fish - belly White | |
| SMC Mold - Pressed Waterproof Floor | 1400x2200 Light Gray Small Squares | |
| PC Door | 700x2000 Swing Door | |
| Special Floor Drain for Integrated Bathroom | Horizontal Discharge/Vertical Discharge | |
| Accessories | Component Name | Specification Model (mm) |
| Wash Basin / Bathroom Cabinet | 800x460x550 Under - counter Basin / with Bathroom Cabinet | |
| Wash Basin Faucet | Copper Chrome - Plated | |
| Wash Basin Drain | Flap - type Drain | |
| Mirror Cabinet | 800x140x800 | |
| Towel Rack | L = 400 Copper Chrome - Plated | |
| One - piece Toilet | Ceramic Top - Press Type | |
| Toilet Paper Holder | Copper Chrome - Plated | |
| Shower Head | Copper Chrome - Plated | |
| Bath Towel Rack | L = 400 Copper Chrome - Plated | |
| Shower Screen | 1400x2000 One - line Swing - open | |
| Triangular Shelf | Copper Chrome - Plated, White | |
| LED Downlight | Foshan Lighting 4W - 4000k | |
| Exhaust Fan | 210x210 Opening White (with Exhaust Hose) | |
| Waterproof Socket | Five - hole / with Splash - proof Cover |
